Medical Grade Power Supplies measure 2 x 4 x 1.18 in.
Share:
Press Release Summary:
Operating from 90-264 Vac, TMC40 series 30-48 W AC/DC switching power supplies include 12 models with output from -15 to 48 Vdc. Withstand voltage is 4,000 Vac from input to output, 1,500 Vac from input to ground, and 500 Vac from output to ground. Units can be fully loaded at -10 to +70°C ambient, with derating required from 100% at +50°C linearly to 50% at +70°C. Overvoltage and overcurrent protection are included. RoHS compliant, power supplies have MBTF of 400,000 hr.
Original Press Release:
Medical Grade Power Supplies from TRUMPower Feature 2"x4" Compact Footprint and 30-48 Watts of Continuous Output at Convection Cooling

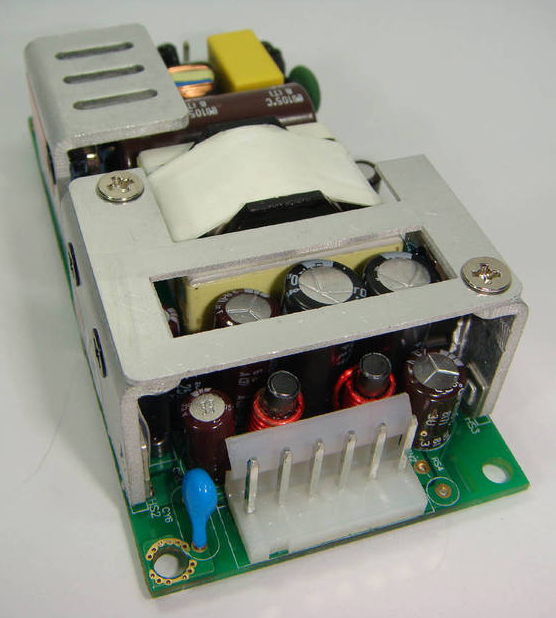

September 30, 2009 - Santa Clara, California, USA - Tumbler Technologies + TRUMPower presents the TMC40 series of 30-48 watt medically approved AC/DC switching power supplies. The units are compact and low profile, having dimensions of 2 x 4 x 1.18 inches.
The TMC40 series is approved to medical and ITE safety standards including UL 60601-1, CSA C22.2 No. 601-1, EN60601-1, UL 60950-1 and EN60950-1. The series operates at an input voltage anywhere from 90-264 VAC. There are 12 standard models with output voltages ranging from -15VDC to 48VDC. The power supplies come with overvoltage and overcurrent protections. Withstand voltage is 4000 VAC from input to output, 1500 VAC from input to ground, 500 VAC from output to ground. Earth leakage current is as low as 150 µA max @ 264 VAC/63 Hz.
The TMC40 series can be fully loaded at -10C to +70C ambient, with derating required from 100% at +50C linearly to 50% at +70C. The units offer high reliability with MTBF of 400,000 hours at full load at 25C ambient, calculated per MIL-HDBK-217F. The units comply with EN61000-3-2 class A and D, EN61000-4-2, EN61000-4-3, EN61000-4-5, EN61000-4-11, in addition to EN55011, EN55022, FCC/VCCI class B conducted and class B radiated EMC standards. It achieves an efficiency of 80-88% typically and meets RoHS requirements. A cover and fan assembly is optional and can be added during manufacturing.
The TMC40 series is competitively priced at $19.50 in OEM quantity. Lead time for the units is 3-5 weeks.
For more information on this series, please visit: www.trumpower.com/library/tmc40.pdf
Tumbler Technologies + TRUMPower has been delivering excellent quality medical and commercial grade AC/DC switching power supplies and DC/DC converters since 1991. The company's medical grade power supplies range from 10W to 650W in wall mount, desktop, open frame, and ATX PC form factors. Tumbler Technologies + TRUMPower can accommodate OEM's needs, whether they are low volume or high volume power supplies, by providing prompt responses and cost-effective power solutions. As a result, it has gained a substantial number of satisfied customers over the years and continues to do so.
For more information on the company and its other products, visit www.trumpower.com or email us at sales@trumpower.com.
