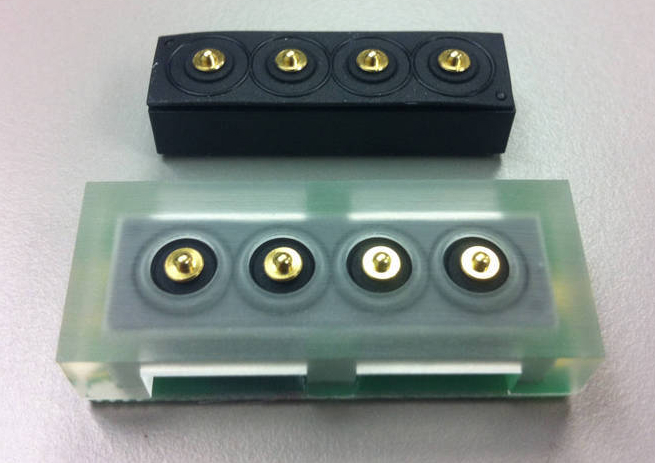

Waterproof Cradle Connector carries IPX7 rating.
January 31, 2013 -
Customized to unique specifications, waterproof male side (cradle) connector is designed so that direction of pogo pins in housing and rubber strip prevent seepage. Rated currents range from 2–10 A, and contact resistance varies from 50–100 mΩ according to end-user requirements. Operating from -45 to +85°C, 12 V-rated connector suits cradle or docking chargers, cellphones, tablet PCs, laptops, barcode readers and POS scanners, handheld GPS units, medical, and other handheld devices.
Original Press release
Yokowo America Corp.
9939 Hibert St., Suite 106
San Diego, CA, 92131
USA
Yokowo Introduces First-Ever IPX7 Rated Waterproof Male Side (Cradle) Connector
San Diego, CA – Water spills on a PC charger; chemicals come in contact with a handheld medical device. While once considered inevitable, damaging liquid seepage into cradle connectors can now be prevented. Yokowo’s new male side (cradle) connector is the first of its kind to be designated waterproof and to achieve an IPX7 rating.
The moving-part construction of pogo pins typically allows for liquids to penetrate through gaps. This can occur between the actual pogo pin head and surrounding tube, or between the small clearance of the pogo pin when housed inside its plastic holder. However, by reversing the direction of the pogo pins in the housing and incorporating a rubber strip, Yokowo’s male side (cradle) connector prevents seepage.
Yokowo’s patent-pending design was developed in response to growing demands for waterproof connectors by makers of cradle or docking chargers, cellphones, tablet PCs, laptops, barcode readers and POS scanners, handheld GPS units, medical and all other handheld devices. Yokowo customizes its connectors to meet the unique specifications of each of these devices.
Rated currents for Yokowo’s new connector are from 2A - 10A, contact resistance is min 50mΩ - 100mΩ (adjustable according to customer requirements), operating temperature is -45ºC - +85ºC, voltage is 12V and durability is 20k – 100k.
As the world’s largest spring connector manufacturer, Yokowo offers a wide range of standard and custom pogo pins and connectors. Space saving and low profile spring pin designs are available for maximum design freedom.
For more information, including samples and pricing, please contact Yokowo America Corporation, 9939 Hibert St., #106, San Diego, CA, 92131, Phone: (858) 547-3520, Fax: (858) 547-3552, email: yokowo@yokowo.com or visit www.yokowoconnector.com.
|
|
|
|
|
|
|
|
|
|
|
