Walk-In Batch Oven is electrically heated to 500°F.
January 25, 2012 -
With 18 x 18 x 10 ft workspace, No. 1019 features 260 kW Incoloy-sheathed tubular elements to heat oven chamber. Total of 66,000 cfm is generated by two 30 hp recirculating blowers, providing combination airflow to workload. Construction includes 6 in. insulated walls, aluminized steel exterior and interior, 2 in. thick insulated flooring with built-in oven truck wheel guide tracks, and motorized dampers on intake and exhaust.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Grieve Corporation, The
500 Hart Rd.
Round Lake, IL, 60073-2898
USA

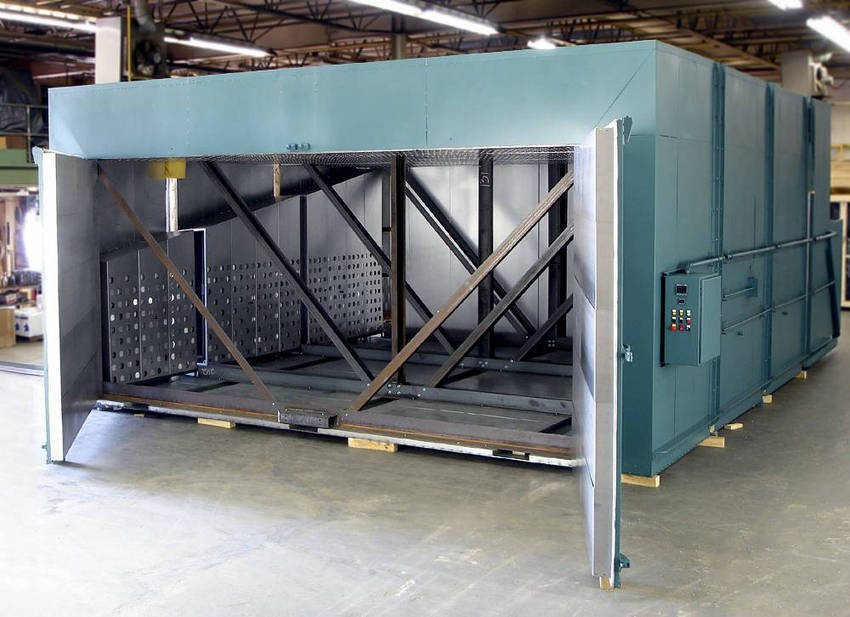

Jumbo 500°F Walk-In Oven from Grieve
No. 1019 is a 500°F electrically-heated walk-in batch oven from Grieve, currently used for curing coatings onto large discs at the customer's facility. Workspace dimensions on this oven measure 18' W x 18' D x 10' H. 260KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a total of 66,000 CFM generated by two 30-HP recirculating blowers provides combination airflow to the workload.
This Grieve walk-in oven features 6" insulated walls, aluminized steel exterior and interior, 2" thick insulated flooring with built-in oven truck wheel guide tracks and motorized dampers on the intake and exhaust for accelerated cooling of the oven chamber. The oven was sectioned into four pieces for shipping convenience.
All safety equipment required for handling flammable solvents, including explosion-venting door hardware, is provided on No. 1019.
Controls on this jumbo walk-in oven include an SCR power controller.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
|
|
|
|
|
|
|
|
