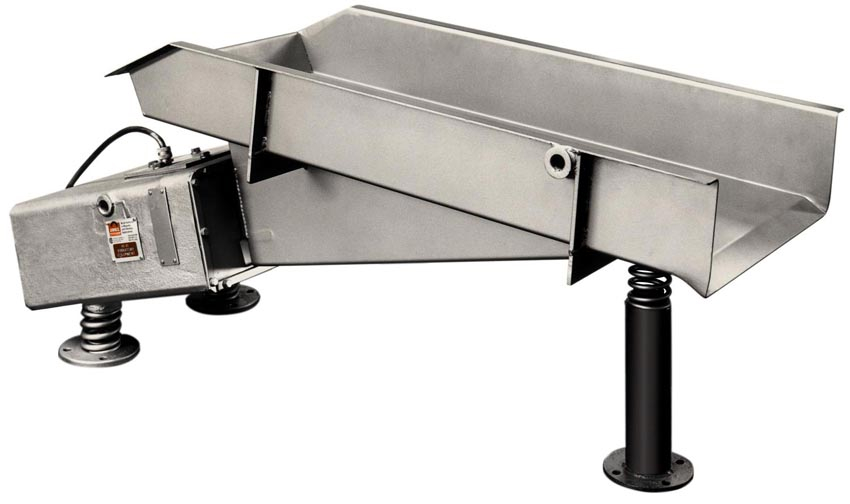

Vibratory Feeders suit difficult material handling demands.
September 9, 2008 -
Wired into AC lines, Heavy Duty Electromagnetic Vibratory Feeders are equipped with Hi-Vi Electro-Permanent Magnetic Drives that require no normal maintenance. Compact variable solid-state-type controls regulate feeder speed by varying applied voltage, and control is stepless from 0-100% of capacity. Coil and magnet are encapsulated in epoxy, eliminating coil movement. Units operate at temperatures up to 135°F, with versions operating at up to 300°F available.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Eriez Magnetics
2200 Asbury Rd., P. O. Box 10608
Erie, PA, 16514
USA
Eriez' Heavy Duty Electromagnetic Vibratory Feeders Deliver Matchless Performance for Difficult Material Handling Demands
Erie, Pa. - Heavy Duty Vibratory Feeders from Eriez provide a solution for large capacity and difficult material feeding applications. The new, affordably priced series of Heavy Duty Feeders offer the same quality and dependability expected from all Eriez' products, but now surpass previous feeding capabilities by up to 20 percent.
All Eriez' Heavy Duty Vibratory Feeders are equipped with Hi-Vi Electro-Permanent Magnetic Drives that require no normal maintenance and consume minimal power. Their rugged and efficient drives provide superb stability, control and accuracy during feeding operations.
Heavy Duty Feeders from Eriez are designed for easy installation and operation. They are simply wired into AC lines; no rectifier is required.
Compact variable solid-state type controls regulate feeder speed by varying applied voltage. Control is stepless from 0 to 100 percent of capacity, with excellent linearity, and can be provided for automated operation.
The coil and magnet in Eriez' drive unit are encapsulated in epoxy, eliminating coil movement and thus extending trouble-free coil life.
The drive element in these innovative feeders is dust and moisture resistant, making external cleaning easier. Special enclosures are available for dusty locations.
Standard units operate at temperatures up to 135 degrees Fahrenheit (57 degrees Celsius). High temperature units are available for temperatures up to 300 degrees Fahrenheit (150 degrees Celsius). Custom design models, trays and hoppers are also offered.
Eriez is recognized as world authority in advanced technology for magnetic, vibratory and inspection applications. The company's magnetic lift and separation, metal detection, x-ray, materials feeding, screening, conveying and controlling equipment have application in the process, metalworking, packaging, recycling, mining, aggregate and textile industries. Eriez manufactures and markets these products through eleven international facilities located on six continents. For more information, call toll-free (888) 300-ERIEZ (3743) within the U.S. and Canada. For online users, visit www.eriez.com or send e-mail to eriez@eriez.com. Eriez World Headquarters is located at 2200 Asbury Road, Erie, PA
|
|
|
|
|
|
|
|
