Two-Way Power Dividers cover broadband from 6.0-40.0 GHz.
December 23, 2011 -
By offering high-pass frequency response, 2-way power dividers attain insertion loss of less than 1.9 dB and greater than 14.5 dB isolation. Each model covers frequency range up to 40.0 GHz, with lower end coverage starting at 6.0 GHz (models 6060400/6060400K), 10.0 GHz (6100400/6100400K), 18.0 GHz (6180400/6180400K); and 26.5 GHz (6265400/6265400K). Supplied in 1.30 x 1.00 x 0.40 in. package, all models offer ±0.38 dB Amplitude Tracking, 1.9 max input VSWR, and and ±6.5° phase tracking.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Krytar, Inc.
1288 Anvilwood Ave.
Sunnyvale, CA, 94089
USA

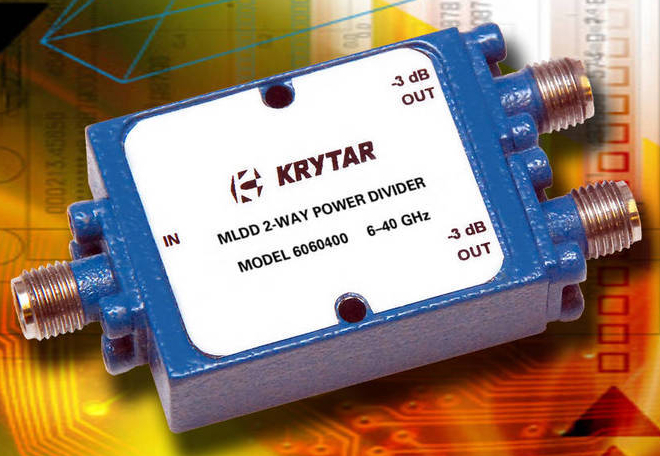

Krytar Announces 8 New, Compact, 2-Way Power Dividers Offering High Performance Over Broadband Frequency from 6.0 GHz to 40.0 GHz
SUNNYVALE, CALIF. - - - KRYTAR, Inc., a leader in the design and production of ultra-broadband microwave components and test equipment announces 8 new 2-way power dividers offering high performance over the broadband frequency range of 6.0 to 40.0 GHz in single, compact, packages.
The new 2-way power dividers complement KRYTAR's family offering the widest frequency coverage on the market. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR used its proprietary design to produce this 18-member family of matched-line directional dividers (MLDD) with ultra-high performance over the broadband frequency range of 0.5 to 45.0 GHz. The new power dividers offer high-pass frequency response to attain low insertion loss and high isolation.
KRYTAR's 8 new power dividers frequency coverage includes: Models 6060400 and 6060400K from 6.0 to 40.0 GHz; Models 6100400 and 6100400K from 10.0 to 40.0 GHz; Models 6180400 and 6180400K from 18.0 to 40.0 GHz; Models 6265400 and 6265400K from 26.5 to 40.0 GHz.
All 8 models feature greater than 14.5 dB Isolation and ±0.38 dB Amplitude Tracking. The two-way dividers exhibit Insertion Loss of less than 1.9 dB across the frequency range. Maximum Input VSWR is 1.9 and Phase Tracking is ±6.5 degrees. Each power divider is a compact package measuring 1.30 inches (L) x 1.00 inches (W) x 0.40 inches (H), and weighing only 1.1 ounces.
KRYTAR's 2-way power dividers feature coaxial female connector options of 2.4mm or K (2.92mm).
These new 2-way power dividers also lend themselves to emerging wireless broadband designs and many test and measurement applications. All KRYTAR 2-way power dividers can be manufactured to meet military specifications.
KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications. Data sheets with specifications and package outline drawings are available via KRYTAR's Web site. Additional information can be obtained by contacting KRYTAR, Inc., 1288 Anvilwood Avenue, Sunnyvale, CA 94089. Tel: +1-408-734-5999, Fax: +1-408-734-3017, Toll Free: +1-877-734-5999, e-mail: sales@krytar.com, Web: www.krytar.com
KRYTAR, Inc., founded in 1975, is a privately-owned corporation specializing in the design and manufacture of ultra broadband microwave components and test equipment for both commercial and military applications. The KRYTAR product line includes directional couplers and detectors, hybrids, power dividers/combiners, terminations, coaxial adapters and a power meter and power sensors. KRYTAR microwave components are manufactured in full compliance with the EU RoHS-6 Environmental Requirements.
|
|
|
|
|
|
|
|
