Torque Limiter Coupling tolerates angular misalignment.
November 25, 2008 -
Featuring low-maintenance design, Flexible Torque Limiter Coupling connects 2 supported shafts while providing overload protection for machine components. Multiple facings are spring-engaged to transmit torque to driven shaft until pre-set torque range is exceeded. Torque limiter then slips under load until jam is cleared or manual/sensor-triggered shutdown occurs. Product allows for up to 0.040 in. parallel offset and up to 3° angular misalignment between coupled shafts.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Mach III Clutch Inc.
322 Elm St.
Ludlow, KY, 41016
USA

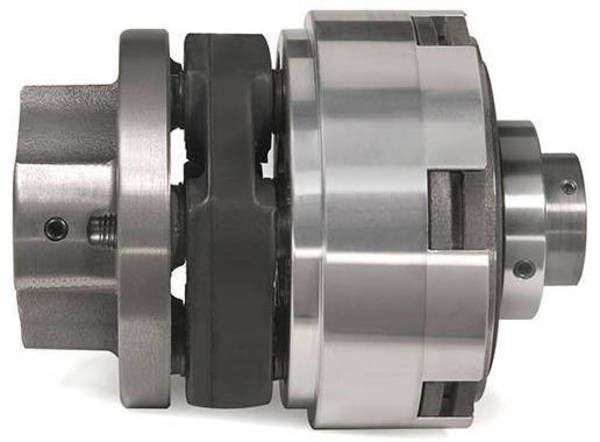

New Mach III Flexible Torque Limiter Coupling
Walton, KY - Mach III introduces the Flexible Torque Limiter Coupling, which offers shaft-to-shaft connection in a simple, low maintenance design. The coupling connects two supported shafts while providing overload protection for costly machine components. Multiple facings are spring engaged to transmit torque to the driven shaft until the pre-set torque range is exceeded. The torque limiter will then slip under load until the jam is cleared, or a shutdown, either manual or sensor-triggered, occurs.
The Flexible Torque Limiter Coupling was designed to accommodate light angular and parallel misalignment. The flexible coupling design allows for up to a 0.040 inch parallel offset and up to a 3 degree angular misalignment between the two coupled shafts. The torque limiter is available in four sizes, for shaft dimensions from 7/8" to 2" with torque settings from 50 to 7,761 pound inches. The torque setting can easily be set or adjusted in the field without having to remove the torque limiter from the machine.
The Flexible Torque Limiter Coupling is appropriate for use in a variety of applications such as packaging machinery, material handling equipment, automation equipment or other machinery where overload protection is required.
Mach III Clutch, Inc., for over 60 years, has designed and manufactured a wide array of standard and custom designed clutches, brakes, and torque limiters. The Company is headquartered in Walton, Kentucky in the Northern Kentucky-Greater Cincinnati Area.
|
|
User comments about this story
drive shaft
hi. i need to conect two 1" shafts with a flexible troque coupling with 300 in lbs.
need to know if you have this and cost please
don parsons
By don parsons on Jan 26, 2012 22:10
Reply to this comment
Flexible / Torque Limiting Coupling
Do you have the torque limiting coupling product?
Specification:
Approx. Nominal torque = 12000 Nm
By Idris on Jan 27, 2010 22:03
Reply to this comment
|
|
|
|
|
|
