Submersible Pump serves wastewater handling applications.
September 12, 2011 -

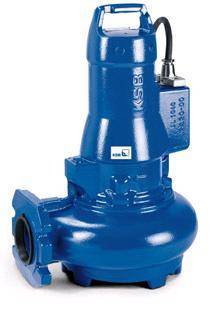

Amarex N comes in 8 models for applications concerning wastewater transport as well as wastewater and sludge treatment. While grinder pumps with 2 in. discharge and S-type impeller macerate and grind solids, Vortex pumps employ F-type impeller and offer from 2-4 in. discharge sizes. All models are explosion-proof and offer reusable, polarized cable entry plug that facilitates maintenance. Other features include air-filled motor, double mechanical seals, and stainless steel shaft.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Frankenthal, , 67227
KSB Releases Proven, Versatile Submersible Pump to U.S. Municipalities and Industries
KSB's Amarex N submersible motor pump provides robust wastewater handling and ease of maintenance at a competitive price.
HENRICO, Va. - KSB, the world's most experienced supplier of wastewater pumps, announces the release of its versatile Amarex N pump to the U.S. market.
The Amarex N is a proven performer, used since 2003 in global markets. With more than 100,000 units sold to date worldwide, KSB is able to offer the reliable, easy-to-maintain Amarex N to U.S. municipalities and industries at a competitive price level.
Versatility for diverse applications
The Amarex N pump is available in eight models to fit a variety of applications, such as:
- fluids containing long fibers and solid substances
- fluids containing gas/air
- raw, activated or digested sludge
- drainage or water extraction
- drainage of rooms subjected to a flooding risk in industrial, municipal and commercial premises
Grinder pumps with 2 inch discharge and featuring KSB's S-type impeller macerate and grind solids that come into contact with the pump, easily carrying them through the pump for discharge.
Vortex pumps employ KSB's F-type impeller with discharge sizes ranging from 2-inch to 4-inch. The 3-inch and 4-inch discharge sizes prevent clogging and are particularly suited to municipal applications.
In addition, the pumps are suitable for stationary wet-well installations (guide cable or guide rails) or portable installations.
A submersible pump with safety in mind
KSB has included features specifically designed to ensure the safety of the pump and its users.
A reusable and polarized cable entry plug makes maintenance easy. There is no need to open the motor to remove the plug for transport or maintenance. Individual connectors are stripped and soldered individually, then sealed in epoxy. The outer cable jacket is sealed by a compressed rubber grommet flanked by two washers.
This design ensures that the cable is not only accessible, but prevents water from entering the motor housing through capillary action. Even if the cable is completely cut underwater, no damage will occur to the motor.
The Amarex N is also explosion proof. It is approved by Factory Mutual (FM) for Class I, Division 1, Group C & D continuous duty cycles. The motor design prevents sparking and possible explosions in wet-well conditions in which gases are present.
Making maintenance easier and more affordable
KSB creates pumps with easy maintenance in mind. Bearings are lubricated for life and the motor casing and discharge volute are cast as a single piece, which means fewer parts requiring routine maintenance.
In addition, single-voltage motors eliminate the need to open the motor to change voltage, avoiding mistakes in the field. And all models are designed to use interchangeable spare parts, such as gaskets, mechanical seals and bearings. This means that organizations can reduce the inventory of spare parts kits that they keep on hand.
Reliability and quality
KSB goes above and beyond to ensure that its pumps are top performers for any wastewater application.
The Amarex N features an air-filled motor and double mechanical seals in an environmentally friendly oil chamber. All Amarex N models come with KSB's stainless steel Type 420 shaft for long service life and to easily handle fluids with abrasive or corrosive characteristics. All pumps are fitted with motor winding temperature protection and moisture sensor to enhance motor service life. KSB can also customize pumps for more extreme conditions by enhancing features such as cable quality, coatings and mechanical seals.
Models featuring vortex impellers are also available in special materials of construction targeted to handle demanding municipal or industrial wastewater applications.
With the U.S. release of the Amarex N, municipalities and industries have access to the most proven, reliable submersible pumps in the world.
About KSB in USA
KSB began operations in the U.S. and Canadian markets in 1974 and has specialized in highly engineered pump products for industrial and utility power plant services, environmental applications, and water and wastewater processing. KSB's 130 years of experience in centrifugal pump development and design ensure that KSB pumps incorporate quality features that provide efficient performance and the highest level of safety. KSB, Inc. is ISO 9001:2008, ISO 14001, and OHSAS 18001 certified. See www.ksbusa.com for more information.
4415 Sarellen Road
Henrico, VA 23231
