Signal Receiver Module provides time code reception.
January 20, 2012 -
Measuring 21.4 x 25.0 mm, Model EB6180B1COB comprises ferrite antenna and PCB featuring MAS6180B1 AM receiver IC and necessary filter crystal and capacitor components. Model MAS6180B1 converts time code signal into digital pulses, which can be directly processed by digital circuitry such as MCU. Time, date, and daylight saving information can be retrieved from signal. Operating from 1.1-3.6 V, Model EB6180B1COB consumes 42 µA during reception and provides 25 µV/m sensitivity.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Micro Analog Systems Oy
Kutomotie 16 FI-00380
Helsinki, ,
Finland
Time Signal Receiver Module
For receiving the German DCF77 or the US WWVB, British MSF and Japanese JJY60 time signal transmissions.

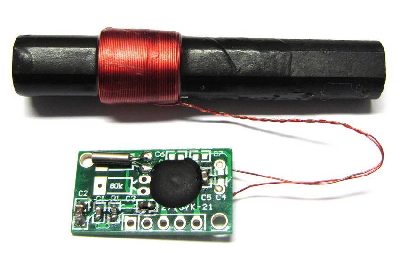

Helsinki, Finland - Micro Analog Systems Oy today announced the availability of the EB6180B1COB module for Time Code Reception (RCC). The new tiny time signal receiver module comprises of a ferrite antenna and a small PCB that includes a MAS6180B1 AM receiver IC accompanied with necessary filter crystal and capacitor components.
The MAS6180B1 AM receiver IC converts the time code signal into series of digital
pulses which can be directly processed by an appropriate digital circuitry such as microcontroller unit (MCU). From the signal both time, date and daylight saving information can be retrieved. The use of a ready made module gives our customers a cost effective solution with an optimized RF design. The included tuned ferrite antenna increases the value of this module even further.
Different versions are available for the 77.5 kHz German DCF77 time signal and the
60 kHz US WWVB, British MSF and Japanese JJY60.
FEATURES
Small size, 21.4 x 25.0 mm
60x10 or 100x10 mm ferrite antenna
Low operating voltage, 1.1V - 3.6V
Low current consumption
- Typ 42µA during reception
High sensitivity
- Typ 25 µV/m
The EB6180B1COB modules are available with an MOQ of 100 modules. Other antenna sizes can be arranged. For further information and samples please contact Micro Analog Systems Oy.
Pricing
EB6180B1COBxxKxxA1 is priced at $3.05 or Euros2.37 @1K units. For others, please
contact Micro Analog Systems or its distributors.
About Micro Analog Systems
Micro Analog Systems Oy (MAS), founded in 1980, is a privately owned fabless
semiconductor company having it's headquarter in Helsinki, Finland, and a worldwide
network of sales offices and representatives. MAS design and markets low voltage,
low power and low noise analog and mixed signal ICs. MAS standard products
include Sensor Interface ICs, Time Code Receivers, Solar Cell Managers, Piezo
Buzzer Drivers as well as Crystal Oscillators and high end Audio ICs.
|
|
|
|
|
|
|
|
