Safety Interlock Switch delivers Category 4 safety protection.
February 17, 2011 -
Offering ISO 13849-1 (Safety Category 4/PLe) compliance for use higher-risk applications, non-contact D40Z measures 48 x 25 mm and has operating distance of 15 mm. Up to 15 switches may be combined with programmable G9SP Safety Controller for use in high-risk, multi-door access applications, and as many as 30 units can be connected to one G9SX-NS Controller. Additional features of this IP67-rated switch include non-magnetic actuator and 2-color diagnostic LED display.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Omron Scientific Technologies Inc.
6550 Dumbarton Circle
Fremont, CA, 94555
USA

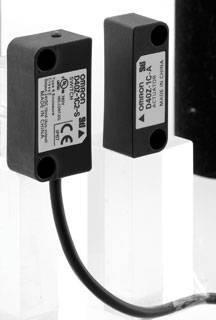

New D40Z Compact, Non-Contact Interlock Switch from Omron STI Delivers Category 4 Safety Protection
ISO 13849-1 compliance enables use in a wide range of higher risk level applications; compact size allows OEMs to standardize across machine designs
FREMONT, CA - Omron Scientific Technologies, Inc. introduces the D40Z Safety Interlock Switch. Up to 15 D40Z switches may be combined with the programmable G9SP Safety Controller, enabling these compact IP67-rated units to be used in a variety of high risk multi-door access applications. D40Z non-contact switches support ISO 13849-1 (Safety Category 4/PLe); and because up to 30 units can be connected to a single G9SX-NS Controller while still maintaining category 4/PLe compliance, they are an ideal safety solution for middle to large scale device applications.
The D40Z is easily mounted from either side of the device with M4 screws. The switch features a two-color diagnostic LED display that provides eight different status indications to simplify troubleshooting, and help keep machines up and running. Additionally, because the 48 mm x 25 mm D40Z is similar in size to Omron STI's D40A safety category 3 (EN 954-1) safety switch, OEMs can standardize across machine designs, simplifying their bill of materials and speeding machine assembly times in the process.
The D40Z safety interlock switch has a long operating distance of 15mm. This reduces the possibility of nuisance trips due to misalignment or guard door vibration in harsh environments. A non-magnetic actuator ensures that the unit will not attract troublesome metal shavings, making it an ideal safety interlock solution in metal cutting and forming applications, and other harsh industrial environments.
About Omron STI
Omron Scientific Technologies, Inc. is a North American provider of automation safeguarding products and services. Omron STI safety products and integration services are used to protect workers around machinery, automated equipment and industrial robots in a wide variety of applications and markets, including semiconductor, automotive, medical, electronics manufacturing, packaging and consumer markets.
Omron Scientific Technologies Inc., 6550 Dumbarton Circle, Fremont, CA 94555; 1-800-479-3658; (510) 608-3400; fax: (510) 744-1442; sales@sti.com; www.sti.com.
|
|
|
|
|
|
|
|
