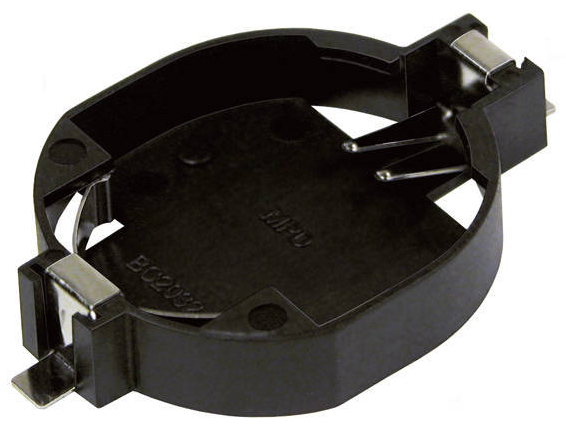

SMT Lithium Battery Holder accommodates CR2032 cells.
August 20, 2010 -
Able to accept CR2032 cell or BR2032 battery, Part No. BC2032-F1 suits consumer and industrial products such as server and workstations PCBs. Features include glass filled, UL94V-0 plastic body; large nickel plated stainless steel pressure contacts with surface mounting tabs; and dual wiping contacts that maintain tight connection with cell for long-term, trouble-free connection. Polarity protected holder measures 21.4 mm wide and 5.2 mm high and is rated for -40 to +260°C operation.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Memory Protection Devices
200 Broadhollow Rd.
Farmingdale, NY, 11735
USA
New Surface Mounting Lithium Battery Holder for CR2032 Cells, P/N BC2032-F1
MPD introduces its new part number BC2032-F1, a battery holder for CR2032 cells. This holder also accepts the ever popular BR2032 battery and is suitable for consumer or industrial products like server and workstations pcb's.
The design was recently discontinued by Sony when they exited the battery holder manufacturing business.MPD offers second sourcing of most brands of holders since several key players exited the market during the economic downturn. Delphi, Specialty Electronics (SEI) and Sony most notably are all former suppliers of battery holders.
BC2032-F1 has large nickel plated stainless steel pressure contacts with surface mounting tabs. Dual wiping contacts keep a keep a tight connection with the cell by design, you're assured of a long term trouble free connection.
The glass filled, UL94V-0 plastic body is light in weight yet combined with high strength for a long service life under the typical conditions electronic equipment is subjected to. Offering a very wide temperature range of -40°c to + 260°c assures the wide range of applications are accommodated. The holder size is 5.2 mm high and only 21.4 mm wide.
The battery holder prevents the insertion of the battery when upside down and it can only be installed with the positive side facing up. This polarity protection reduces service problems and/or calls to the manufacturer using the BC2032-F1 in its products.
List price for 1,000 pieces is $0.47 each and volume discounts are available. Delivery is normally from distributor stock or after a short waiting period.
Web Link: http://batteryholders.com/cr2032.shtml
|
|
|
|
|
|
|
|
