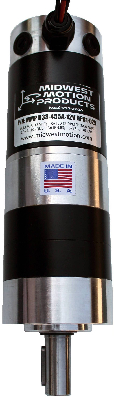

Reversible DC Gearmotor features IP54-sealed design.
July 30, 2012 -
Accepting any 12 Vdc source, including battery power, Model MMP-D33-455A-12V GP81-029 develops 136 lb-in. continuous torque at 140 rpm and 1,062 lb-in. peak torque. Unit measures 3.2 in. in dia x 9.25 in. long with keyed output shaft measuring 19 mm in dia x 40 mm long. Mounting is accomplished with 4 face mount M6 threaded holes, equally spaced on 65 mm dia B.C., or optional NEMA34 flange. Weighing approximately 11 lb, motor requires 28.6 A at 12 Vdc to generate full-load torque.
|Original Press release |
Midwest Motion Products
10761 Ahern Ave., S.E.
Watertown, MN, 55388
"IP-54" Sealed, High Power, 12 Vdc Gearmotor Develops 136 Lb. In. Torque at 140 RPM
Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear- Motor, Model # MMP-D33-455A-12V GP81-029 - Accepting any 12 Volt DC source, including battery power, this robust Gear Motor measures just 3.2" (max) Diameter, by 9.25" long and has a keyed output shaft of 19mm diameter by 40mm long. Easy mounting is accomplished with 4 "face mount" M6 threaded holes, equally spaced on a 65mm Dia. B.C. or an optional NEMA34 Flange, is also available.
The output of this fully reversible gearmotor is rated for 136 IN-LBS continuous torque, at 140 RPM, and 1062 IN-LBS (120 Nm) Peak Torque. Despite its compact size, and weight of approximately 11 pounds, it's an efficient design, requiring just 28.6 Amps at 12 Volts DC to generate its Full-Load Torque. This translates into long battery charge, very LOW-NOISE operation, and lower cost drive electronics. Motor windings for 18v, 24v, 28v, 36v, 42v, 48v, 60v & 90 Volts are available.
∑ This versatile design can accommodate our Standard Failsafe Brakes, and/or Optical Encoders.
∑ "Power On" brake designs also available.
∑ This unique design is rated at an "IP 54" protection level for operation in harsh environments.
∑ Variable Speed can be accomplished with our fully compatible Speed Controls.
Samples are available FROM STOCK for rapid prototyping needs. Contact our Sales Offices for immediate prototype Shipments.
Typical options available from the company include:
∑ Servo Motors with integral Optical Encoders
∑ Failsafe Brakes, Power-On Brakes, Analog Tachometers
∑ Planetary Gearheads, with standard ratios ranging from 3:1 to 2653:1, and standard or low backlash precision gearing available.
∑ Motor Winding Options include 18V, 24V, 28V, 36V, 42V, 48V, 60V and 90 Volts DC.
MMP offers a variety of standard ancillary equipment including DC power supplies, DC Servomotors, PWM Servo Amplifiers, Motor Speed Controls, Linear Actuators and a wide variety of DC gear-motors.
Custom Motor Shaft and mounting configurations are also available, with volume orders.
Typical applications include Wheel Chair Lifts & Wheel Chair Ramps, Medical Patient Lifts, Solar Tracking, Battery Operated Motors & E.V. drives, Medical, Mobility / Accessibility products, Robotics & Automation including (Military) Unmanned Guided Vehicles, Semiconductor Processing Equipment, Actuators, Packaging & Labeling Machines, Woodworking & Metalworking Machines, Dynamic Displays for Tradeshows and many other applications requiring precise, powerful motion control.
For Further Information, Please contact:
Randy Cordes, Director of Sales - Midwest Motion Products, Inc.
Phone: 952-955-2626 Ext. 25
