Precision Gear and Dial Hubs eliminate keys or splines.
June 21, 2012 -

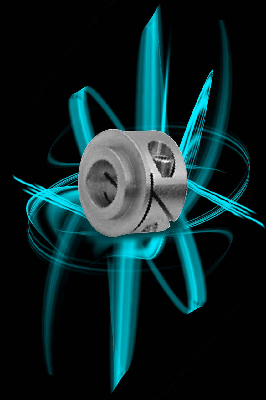

Designed to fit gears or dials, S2F06Y Series is made of 303 SS with bore diameters from .0900-.2498 in. and hub mounting lengths from .062-.187 in. Fairloc® hubs permit frequent phase, timing, and position adjustment while adding positive metal-to-metal fastening strength along both hub sections. Integral hub fastener consists of 2 slots that are machined into hub, one radially and another angularly, to create transverse wedge which remains attached to solid portion of hub on one side.
Original Press release
Sterling Instrument
2101 Jericho Turnpike, Box 5416
New Hyde Park, NY, 11042-5416
USA
New Precision Gear & Dial Hubs from SI Designed to Fit Hubs with Limited Hub O.D., Eliminates Keys
(New Hyde Park, NY) -- A new series of precision gear & dial hubs from Sterling Instrument (ISO 9001:2000+AS9100B Registered Manufacturer) are designed to fit gears or dials, plus eliminate keys or splines. Identified as the S2F06Y-.... Series, they are made of 303 stainless steel. Hub mounting lengths range from .062" to .187". Their bore diameters range from .0900" to .2498". These Fairloc® hubs can be ordered pre-assembled to gears or dials.
The choice of Fairloc® hubs permits frequent phase adjustment, timing and position adjustment while adding positive metal-to-metal fastening strength along both hub sections. The Fairloc® integral hub fastener consists of two slots that are machined into the hub, one radially and the other angularly, to create a transverse wedge which remains attached to the solid portion of the hub on one side. The resultant cantilevered clamping section has a tapped hole to accept a cap screw which passes through a clearance hole in the solid portion of the hub, and into a threaded hole in the transverse wedge section. As the screw is tightened, the cantilevered section clamps the shaft securely. The screw can be tightened and released repeatedly without marring the shaft or affecting its torque-transmitting abilities. Quotes, online orders, and 3D CAD Models are available at the new eStore at: www.sdp-si.com/eStore.
Detailed specifications are contained in Catalog D810, available free upon request from Sterling Instrument, 2101 Jericho Turnpike, P.O. Box 5416, New Hyde Park, NY 11042-5416. Phone: 516-328-3300, Fax: 516-326-8827. Web: http://www.sdp-si.com/web/html/newprdgearhub.htm
|
|
|
|
|
