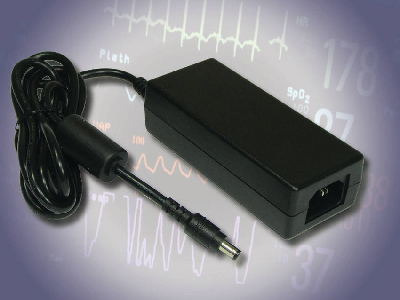

Medical Desktop Power Supplies deliver 30 W of power.
June 4, 2010 -
Housed in 1.96 x 4.64 x 1.26 in. package, PMP31 Series has 90-264 Vac input and includes 6 single-output models ranging from 5-48 Vdc. Withstand voltage is specified at 1,500 Vac from input to output and leakage current is 300 mA max at 264 Vac input. With standby power of less than 0.3 W and min efficiency of 83.5%, power supplies are in compliance with CEC and Energy Star Efficiency Level IV requirements. Units operate from 0-40°C and employ both overvoltage and overcurrent circuitry.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Protek Power North America, Inc.
43 Broad Street, Suite B206
Hudson, MA, 01749
USA
Low Cost 30W Desktop Medical Power Supplies
Hudson, MA - Designed to cost effectively power today's medical devices, the PMP31 Series of medical desktop power supplies from Protek Power provides 30 Watts of power in a compact 1.96" x 4.64" x 1.26" package.
The PMP31 Series is approved to UL60601-1, CSA22.2 No. 601.1, and EN60601-1 medical standards and complies with EN55011/FCC/VCCI Class B radiated and conducted EMI standards. With standby power of <0.3W and efficiency at 83.5% minimum, the PMP31 units are in compliance with CEC and Energy Star Efficiency Level IV requirements. The Series is also RoHS compliant.
The PMP31 Series has a 90-264VAC input and offers six single output models ranging from 5VDC up to 48VDC. Custom output voltage solutions are also available. Withstand voltage is specified at 1500VAC from input to output and leakage current is specified at 300mA maximum at 264VAC input.
Operating temperature is 0°C to +40°C. No minimum load is required while still maintaining 5% tolerance throughout the full load range. Ripple and noise is specified at 1% peak-to-peak. Comprehensive overvoltage and overcurrent circuitry is employed to protect the end equipment and the power supply.
Pricing starts at $19.58 in OEM quantities, with delivery from stock to 8 weeks ARO. Full specifications are available online at http://www.protekpowerna.com or please contact our Technical Group at tech@protekpowerna.com. For price and delivery questions, please contact us at sales@protekpowerna.com or via telephone at 978-567-9615
|
|
|
|
|
|
|
|
