Manual 3D SPI System streamlines solder inspection process.
September 14, 2012 -
Operating with VisionMaster software, M500 solder paste inspection (SPI) system utilizes multi-core processors and GPU parallelism to promote processing speed and user responsiveness. With one click, system recognizes and measures solder paste in camera's view then displays height and volume readings for each pad. Double-clicking readings adds them to built-in SPC charts. Machined from aircraft grade aluminum, system is mounted on vibration damping, ESD-resistant granite base.
Original Press release
VisionMaster
110 Exchange Street, Suite 300
Portland, MA, 04101
USA

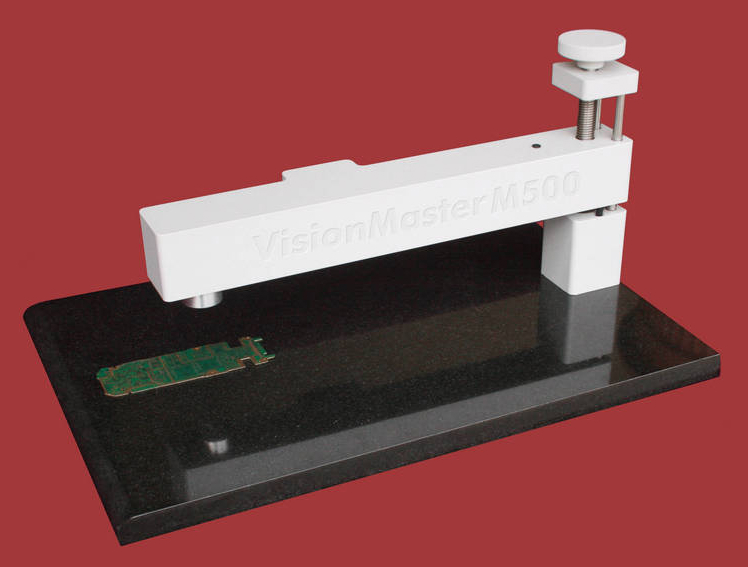

VisionMaster Masters 3-D SPI with the Introduction of the M500
PORTLAND, MAINE – VisionMaster, Inc., a leading manufacturer of advanced 3-D solder paste inspection (SPI) and measurement equipment, debuts the M500 Manual 3-D SPI system. With the most advanced VisionMaster software to date, the M500 makes full use of modern multi-core processors and available GPU (video card) massive parallelism to speed up processing and user-responsiveness.
The M500 runs with a single click, automatically recognizing and measuring solder paste in the camera's view. Height and volume readings for each pad are displayed clearly. Just as easily, double-clicking readings add them to the built-in SPC charts. Long life, solid-state LEDs are used for projection and background lighting. Additionally, advanced CMOS image sensors are immune to electrical analog noise, resulting in very repeatable measurements.
Like all other VisionMaster equipment, the M500 uses advanced white light Moiré interferometry to build height data for every pixel in the view at a fraction of the cost of the competition. VisionMaster honed this technology for SPI use and is the only manufacturer in the world deploying this sophisticated 3-D algorithm for manual benchtop units.
The M500 requires zero maintenance and is designed to provide years of trouble-free usage. Rugged yet light and portable, the sensor is machined from aircraft grade aluminum and is mounted on a vibration damping, ESD-resistant granite base. To ensure consistent high quality, more than 95 percent of components are sourced in the United States.
For more information about VisionMaster's M500 Manual 3-D SPI system, visit www.visionmasterinc.com.
About VisionMaster
Established in 1996, VisionMaster is a privately held company that focuses on the most efficient, effective engineering to ensure the highest quality products. Focusing on RD, VisionMaster has made strategic investments so that the company has the capacity to create custom components, which results in superior specs while lowering its – and it customers' – costs. Every aspect of the M500 and A500 have been completely re-engineered, and the results show it. For more information, visit www.visionmasterinc.com.
|
|
|
|
|
|
|
|
