LED Light Pipe features splash-proof, dual-color design.
April 27, 2011 -

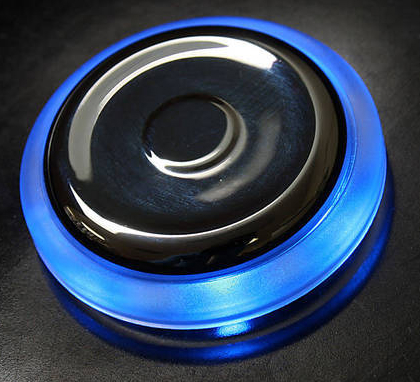

Mounted directly to panel, TransBrite(TM) Halo Ring(TM) makes it possible to add visible dual-color indicator lights on switches. Dual-ring gasket design provides protective rubber layer in front of indicator light, making technology splash-proof and waterproof. Available in custom sizes from 10-20 mm, Halo Ring features viewing angle of 120° and extended temperature range of -40 to 100°C. Applications include medical devices, industrial controls, and communications equipment.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
425 North Gary Avenue
Carol Stream, IL, 60188
New Transbrite Family of Lightpipe Technology From Lumex Features Patented Splash-proof, Dual-color Halo RIng
TransBrite family of light pipes includes over 70 standard technologies as well as custom capabilities
PALATINE, IL - Lumex announces the global launch of the TransBrite(TM) family of light pipe technology for LEDs in both standard and custom formats created with state-of-the-art ray trace software with precise 3D CAD/CAM models to ensure optimal design for light transmittance.
Part of the new Lumex TransBrite light pipe family, the patented Halo Ring(TM) light pipe makes it possible to add visible dual-color indicator lights on switches with efficiency and performance unmatched in the market today. The Halo Ring is mounted not to a PCB but rather directly to the panel, generating real-estate savings of up to 10% on the PCB board and up to 20% inside the technology cabinet. Product design is simplified as indicator lights can be quickly and easily integrated into the panel without creating the need to redesign the PCB board.
The Halo Ring´s unique design also provides dual-color performance from a single light pipe without color mixing. Allowing a single dual-color light pipe to replace two individual light pipes generates up to 15% real estate savings on the display panel as separate holes are no longer needed for different indicator colors.
The Halo Ring is designed for optimal performance in challenging environments. It´s unique dual-ring plus gasket design provides a protective rubber layer in front of the indicator light, making the technology splash and water-proof (IP rating 67) The Halo Ring features a wide viewing angle (120°) and an extended temperature range of -40°C to 100°C to ensure high visibility even in extreme conditions.
Due to its ability to generate significant real-estate savings and market-leading durability, the Halo Ring is ideally suited for a wide number of portable and extreme environment applications including:
o medical device technology (including instrument controls for devices such as x-ray, MRI and ultrasound equipment);
o industrial control applications (including visual toggle switches, portable metering controllers and custom track panels);
o security and life safety applications (including panel switches, burglar and fire alarm systems, and access control panels);
o communications equipment (including network routers, switches and video servers).
Available in custom sizes from 10mm to 20mm in blue, white, red, yellow and green color varieties, the RoHs compliant Halo Rings are available for $9.00 to $10.00 in production quantities with lead times ranging from six to eight weeks.
The TransBrite light pipe family consists of over 70 standard light pipe technologies in single or array, molded or flexible, single or multi-color formats with right angle, vertical or horizontal packaging for either panel or PCB mounting.
Lumex also provides custom light pipe technology using cutting-edge development tools to ensure optimal performance for each specific application. The Lumex Technical Design Team expertly matches complimentary LED and light pipe technologies and then uses state-of-the-art 3D CAD/CAM modeling, ray tracing program and rapid prototyping to provide a solution that maximizes light intensity and uniformity while minimizing unwanted light loss. The ability to conduct precise trial-and-error development with advanced software technology speeds time to market while reducing up-front tooling costs considerably. Products can be brought to market up to 35% faster than traditional product development timelines at up 40% cost savings.
Custom and standard TransBrite light pipes for LEDs are well-suited for a wide variety of applications including panel illumination, automotive accent lighting, and small space lighting, as well as indication for control panels, user-interfaces and warning lights.
