GaAs MMIC Digital Attenuator serves CATV, STB applications.
August 31, 2011 -

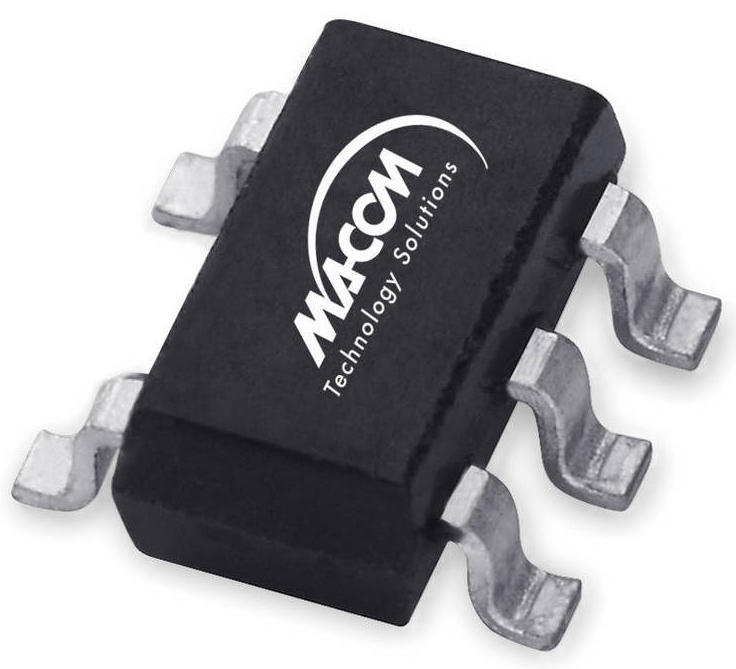

Fabricated as monolithic GaAs IC using pHEMT process, MAAD-010305 is designed to condition cable input signals to STB. This 1-bit, linear solution, suited for use in high-volume consumer premise equipment, exhibits 0.3 dB insertion loss, 15 dB attenuation, and 14 dB input and output return loss. Designed for operation from DC to 1.1 GHz, product comes in RoHS-compliant, SOT-25, 5-lead SMT plastic package and allows for positive and negative voltage control complimented by 75 ohm impedance.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
M/A-COM Technology Solutions, Inc.
100 Chelmsford Street
Lowell, MA, 01851
M/A-COM Technology Solutions Announces 1-Bit Digital Attenuator for CATV Applications
New GaAs Integrated Digital Attenuator Features Low Insertion Loss and 75 W Impedance
Lowell, MA - M/A-COM Technology Solutions Inc. (M/A-COM Tech), a leading supplier of high performance analog semiconductor solutions, introduced today a 1-Bit digital attenuator for CATV and set-top box (STB) front end applications. The MAAD-010305 is a 15 dB step GaAs MMIC digital attenuator. It is designed to condition cable input signals to the STB. The device is ideally suited for use where high accuracy, very low power consumption, and low intermodulation products are required.
"We are very pleased to continue the expansion of our 75 W product portfolio with the introduction of this highly linear, 15 dB digital attenuator," said Graham Board, Product Manager. "This device is ideally suited for use in high volume, cost sensitive customer premises equipment."
The table below outlines typical part number performance:
Parameters Units MAAD-010305
Insertion Loss dB 0.3
Attenuation dB 15
Input Return Loss dB 14
Output Return Loss dB 14
Input IP3 dBm 46
P1dB dBm 20
CTB (157 Channels,
PIN = 35 dBmV/Ch) dBc 70
PIN = 35 dBmV/Ch) dBc 66
Transients mV 20
The MAAD-010305 is fabricated as a monolithic GaAs integrated circuit using a mature pHEMT process. The process features full chip passivation for performance and reliability. The attenuator is designed for operation from DC to 1.1 GHz. It is packaged in a RoHS compliant lead free SOT-25, five-lead surface mount plastic package. The MAAD-010305 is characterized by low insertion loss and allows for positive and negative voltage control, complimented by 75 W impedance.
Production quantities and samples of MAAD-010305 are available from stock. Final datasheets and additional product information can be obtained from the M/A-COM Tech website at www.macomtech.com
