Differential Pressure Transmitters feature miniature design.
May 23, 2011 -
Equipped with piston sensor, Model 1002 has DP range of 0-4 to 0-75 psid and max line pressure rating of 3,000 psi. Model 1020, with diaphragm sensor, has DP range of 0-25 in. water to 0-10 psid and max line pressure rating of 1,000 psig. Both offer current or voltage output, rated at 4-20 mA or 0-5 Vdc, with accuracy of 10%. Featuring 1/8 in. NPT porting and optional 1 in. dia plastic dial cases, transmitters are suited for filtration, level, flow, and heat exchanger applications.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Orange Research, Inc.
140 Cascade Blvd.
Milford, CT, 06460
USA

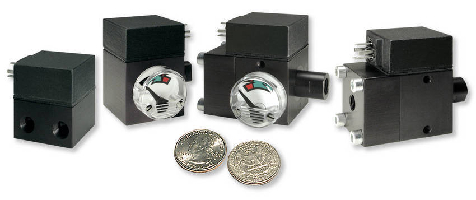

New Miniature Differential Pressure Transmitters are Low-Cost Alternative for Many Applications
MILFORD, CT - New miniature DP transmitters from Orange Research are low-cost alternatives for many filtration, level, flow and heat exchanger applications. Traditional sensing approaches often have unnecessary features that inflate costs needlessly. The new 1002 and 1020 models have the accuracy and features best suited for the most popular OEM applications so customers avoid paying for features they don't need.
The new mini transmitters are built on Orange Research's proven design, using the same pressure bodies and sensors that make it the #1 OEM differential pressure indicator and switch. The same transmitter technology used in larger models has been incorporated into these miniature products to provide an attractive, low-cost alternative.
Both models offer transmitters with current or voltage output, rated at 4-20 mA or 0-5 V. The models have an accuracy of 10% (5% repeatability), optional 1" diameter durable plastic dial cases, and 1/8" NPT porting (many options available). Model 1002, with a piston sensor, has a DP range of 0-4 to 0-75 psid and a maximum line pressure rating of 3000 psig. Model 1020, with a diaphragm sensor, has a DP range of 0-25" water to 0-10 psid and a maximum line pressure rating of 1000 psig. If 2% accuracy is needed, standard size DP transmitter models are available.
Orange Research offers a large selection of low-cost, rugged and reliable products for measuring differential pressure, flow and liquid level. Built to last, these products are known for long life and reliable service under the harshest conditions.
For more information on our new miniature DP transmitters follow this link to our website (http://www.orangeresearch.com/differe...). The web page includes downloadable PDFs of product specifications, instructions, drawings and catalog pages.
Orange Research | 140 Cascade Blvd. | Milford CT 06460
Toll-free: 800 989-5657 | Phone: 203 877-5657 | Fax: 203 783-9546
Website: http://www.orangeresearch.com | E-mail: info@orangeresearch.com
CONTACT: Jim Gill
|
|
|
|
|
|
|
|
