Compact 8-Way Power Dividers cover wide broadband frequency.
February 23, 2012 -
Covering broadband frequency ranges of 1.0-18.0 GHz and 2.0-18.0, respectively, Model 8010180 and Model 8020180 matched-line directional dividers (MLDD) come in 5.96 x 4.75 x 0.52 in. package with 3.5 mm coaxial female connectors. Both models offer 17 dB isolation, ±1.0 dB amplitude tracking, 5.5 dB insertion loss, and ±15° phase tracking. Max input VSWR is 2.10 and output is 1.75 for 8010180; respective values are 2.00 and 1.75 for 8020180.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Krytar, Inc.
1288 Anvilwood Ave.
Sunnyvale, CA, 94089
USA
Krytar Announces Two New Compact 8-Way Power Dividers Offering High Performance Over Broadband Frequency from 1.0 GHz to 18.0 GHz
SUNNYVALE, CALIF. - - - KRYTAR, Inc., a leader in the design and production of ultra broadband microwave components and test equipment announces two new 8-way power dividers offering high performance over the broadband frequency range of 1.0 to 18.0 GHz in compact packages.
KRYTAR's new power divider offers the widest frequency coverage in a single package on the market and provides superior performance. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range.
KRYTAR's technological advances provide excellent operating performance of these 8-way units. Model 8010180 covers 1.0 to 18.0 GHz with 17 dB Isolation and ±1.0 dB Amplitude Tracking. The 8-way divider exhibits Insertion Loss of 5.5 dB across the frequency range. Maximum Input VSWR is 2.10 and Output is 1.75. Phase Tracking is ±15 degrees.

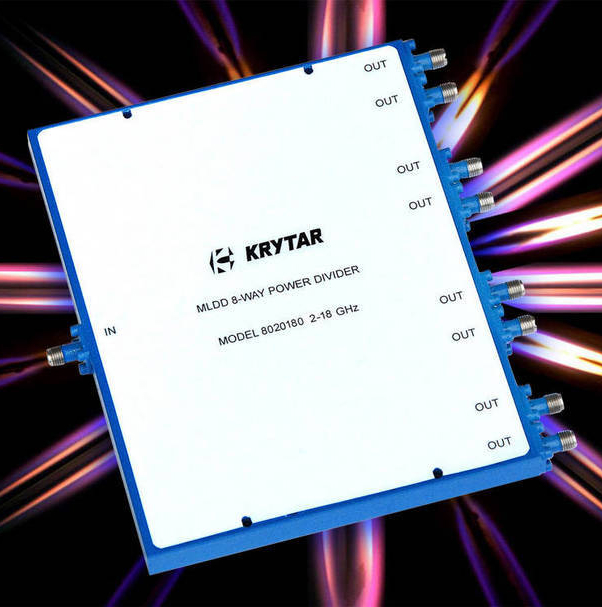

Model 8020180 covers 2.0 to 18.0 GHz with 17 dB Isolation and ±1.0 dB Amplitude Tracking. The 8-way divider exhibits Insertion Loss of 5.5 dB across the frequency range. Maximum Input VSWR is 2.00 and Output is 1.75. Phase Tracking is ±15 degrees.
Both power dividers are compact packages measuring just 5.96 inches (L) x
4.75 inches (W) x 0.52 inches (H), weigh only 1 pound, 6.5 ounces, and come with standard 3.5-mm coaxial female connectors.
These new 8-way power dividers lend themselves to emerging wireless broadband designs and many test and measurement applications. The 8-way power dividers can be manufactured to meet military specifications.
KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications. A data sheet with specifications and package outline drawing is available via KRYTAR's Web site. Additional information can be obtained by contacting KRYTAR, Inc., 1288 Anvilwood Avenue, Sunnyvale, CA 94089. Tel: +1-408-734-5999, Fax: +1-408-734-3017, Toll Free: +1-877-734-5999, e-mail: sales@krytar.com, Web: www.krytar.com
KRYTAR, Inc., founded in 1975, is a privately-owned corporation specializing in the design and manufacture of ultra broadband microwave components and test equipment for both commercial and military applications. The KRYTAR product line includes directional couplers and detectors, hybrids, power dividers/combiners, terminations, coaxial adapters and a power meter and power sensors. KRYTAR microwave components are manufactured in full compliance with the EU RoHS-6 Environmental Requirements.
|
|
|
|
|
|
|
|
