Batch Oven cures composites for automotive industry.
February 24, 2009 -
With chamber dimensions of 25 x 10 x 9 ft, electrically heated batch oven is constructed with 4 in. thick tongue and groove panel assemblies and 20 ga aluminized steel interiors and ductwork. Maximum operating temperature is 500ºF. Heating system provides 240 kW heat input with SCR power control and recirculation system has 29,000 cfm at 25 hp blower. Exhaust features motorized dampers on both fresh air inlet and exhaust outlet for enhanced heating and cooling capabilities.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Wisconsin Oven Corp.
2025 Young St.
East Troy, WI, 53120
USA
Batch Oven Cures Composites for Automotive Industry

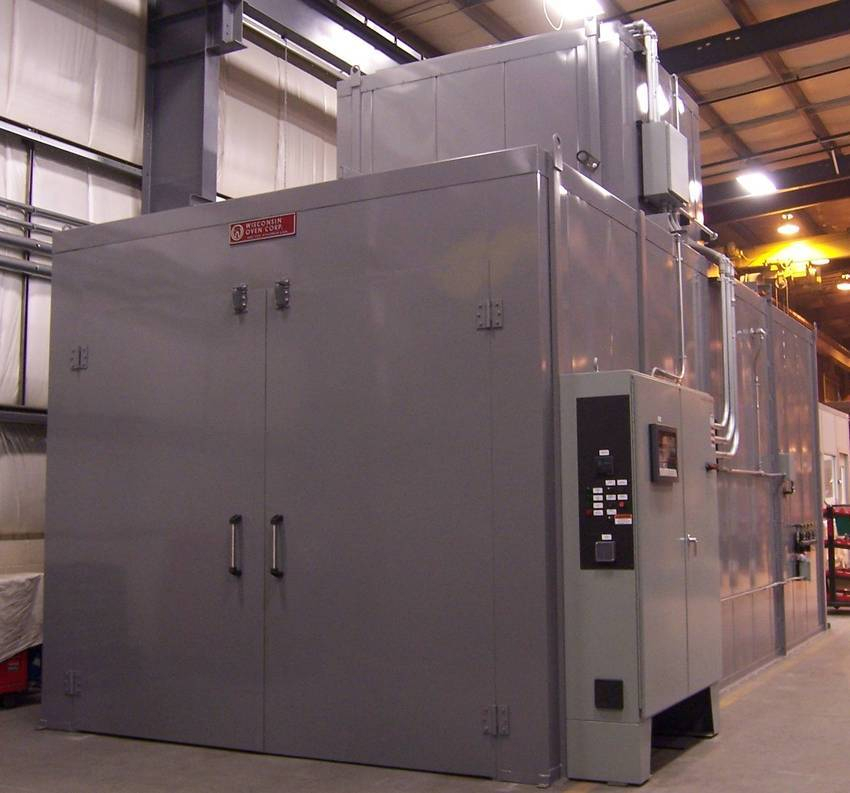

Wisconsin Oven designed and manufactured an electrically heated batch oven to cure composite material for the automotive industry. The curing oven has chamber dimensions of 10'0" wide x 25'0" long x 9'0" high and a maximum operating temperature of 500º F.
The oven is constructed with 4" thick tongue and groove panel assemblies and 20 gauge aluminized steel interiors and ductwork. The heating system features incoloy sheathed heating elements, for a total of 240kW heat input with SCR power control. The recirculation system has a 29,000 CFM @ 25 HP blower, and utilizes combination airflow to maximize heating rates and temperature uniformity.
The oven is specifically designed with composite curing features for precise temperature and pressure control. The exhaust features motorized dampers on both the fresh air inlet and the exhaust outlet for enhanced heating and cooling capabilities. Four (4) interior vacuum stubs are located on the side of the oven and piped to the main vacuum manifold. A sixteen (16) position type "J" thermocouple jack panel, transducers, and solenoids were also provided on the side of the oven. All of these composite curing features provide the customer with the ability to closely monitor part temperatures for a high quality cure. For more information on composite curing ovens visit our website at http://www.wisoven.com/composite.htm.
The customer required a 9-point temperature uniformity of +/-10° F at 350° F. Actual temperature uniformity results were +3.9° F / -6.8° F @ 350° F. The oven has a NEMA 12 control enclosure with IEC style motor starters, push buttons, and pilot lights. The temperature for the oven is controlled by a Honeywell DCP300 programmable controller and recorded by a Honeywell DPR250 recorder.
For further details on this equipment, or if you would like to work with us on another application, call Mark Schahczinski at (262) 642-6017, or by email at marks@wisoven.com. To request a quote for a composite curing oven please fill out our online questionnaire with your equipment specifications at http://wisoven.com/batchsurvey.htm.
Visit Wisconsin Oven at the JEC Composites Show in Paris, Booth #P78, March 24-26th 2009.
|
|
|
|
