Air Operated Monorail Hoist offers lift capacity of 125 tons.
October 27, 2011 -
Operating from 6 bar air pressure, Model EH 125 is equipped with 10 kW and 2.8 kW rated motors for lifting and traverse functions, respectively. In standard format, hoist is supplied with 6 double-chain mechanism providing 3 m lift at speeds of 0.30 m/min with full load, and 0.38 m/min on lowering. System offers horizontal travel speeds of 6 m/min with max load and 8 m/min when unloaded. Operating from -20 to +70°C, hoist has Ex rating for use in hazardous areas.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
J D Neuhaus L.P
9 Loveton Circle
Sparks, MD, 21152
USA

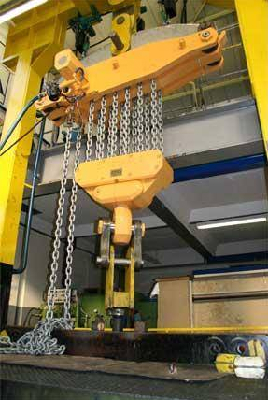

Most Powerful Air Hoist Lifts 125 Tons
What is believed to be the world's first air operated hoist with a lift capacity of 125 tons has been manufactured by materials handling and lifting specialists J D Neuhaus. This is the most powerful unit in their EH range of handling equipment.
Designated as an EH 125 monorail hoist, the unit operates from a 6 bar air pressure and is equipped with 10kW and 2.8kW rated motors for the lifting and traverse functions respectively. In standard format, the hoist is supplied with a six double-chain mechanism providing a three meter lift at speeds of 0.30 m/min within a full load, and 0.38 m/min on lowering. Horizontal travel speeds of 6 m/min are achieved with maximum load and 8 m/min when unloaded. A two meter length flexible connection is supplied with an ergonomic multi-function pendant controller for precise, infinitely variable control of the lift/lowering and traverse operations for safe, accurate load placements.
The hoist is designed for operating within heavy industries such as steelworks, cement, chemical, power generation and shipbuilding plants as well as the oil and gas markets. The low-headroom design ensures that the hoist can be used where minimum operating space is available, while an Ex rating ensures suitability for use in hazardous areas where there is a potential risk of explosion. The product is 100% duty rated while also being insensitive to humidity and dust laden atmospheres, and can operate within a temperature range of -20°C to +70°C.
As with all the JDN high performance lifting products, standard safety features include a fail safe brake to hold the load in the event of air supply failure, an emergency shut-off valve, anti-climb and anti-drop devices together with an emergency lowering device. Optional accessories include overload and increased spark protection, two speed trolley travel control and rack and pinion drive. Non-standard lift heights and remote radio-control operation can also be accommodated.
J D Neuhaus are a privately-owned company, founded in 1745, and for over 265 years they have been using their expertise and experience to manufacture the highest quality hoists, winches and cranes. Their products offer solutions to almost every material handling problem irrespective of the driving medium: from air, manual and hydraulic hoists up to complete crane installations with explosion proofness.
JDN products are used in a wide variety of industries including: Airplane Yards; Atomic/Coal Power Stations; Big Bag Handling; Cement Industry; Chemical Industry; Crane Manufacturers; Dairies; Food Industry; Foundries; Galvanization; Glass/Ceramics; Large Kitchens; Leather Plants; Locks; Machine and Plant Construction; Mining; Motor Car Industry; Offshore/Onshore; Oil Storage; Over/Underground Construction; Paints and Varnish; Painting and Coating Installations; Paper Industry; Pharmaceutical Industry; Printing Industry; Pyrotechnics Industries; Refineries; Sawmills; Shipbuilding and Shiprepair Yards; Ships; Space Technique; Spray Booths; Steel Works; Surface Technique; Tank Cleaning Devices; Textile Industry; Tunnel; Tire Manufacturers; Vacuum Technique
Contact J D Neuhaus
J D Neuhaus are represented in more than 90 countries and over 70 branches Worldwide.
|
|
|
|
|
|
|
|
|
|
|
