Non-Polarizing Beam Splitter's from Abrisa Technologies Reflect and Transmit Mirror Images |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Abrisa Technologies
200 S. Hallock Dr.
Santa Paula, CA, 93060
USA
Press release date: February 1, 2012

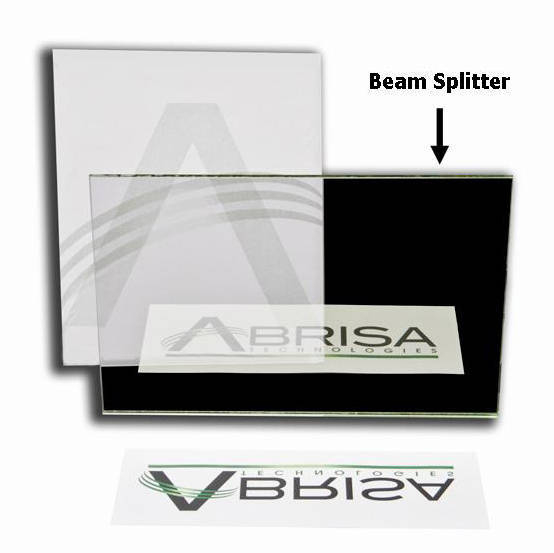

Abrisa Technologies designs and manufactures durable, light weight, non-polarizing plate beam splitters or optical mirrors for those applications where image polarization must be maintained across multiple optical paths. Beam splitter plates from Abrisa Technologies are available in various levels of transmittance and reflectance. Non-polarizing beam splitters greatly reduce the polarizing effect; in fact, they typically have less than half the polarizing effect of a standard beam splitter.
Typical applications include:
Broadcasting equipment (teleprompters)
3D camera rigs
Photographic equipment
Laser equipment
Measuring instruments
Flight simulators
Information displays and screens
The color neutral non-polarizing beam splitter plates from Abrisa Technologies have one surface coated with a hybrid multi-layer film for transmittance/reflectance values and the second surface has a thin film anti-reflective coating applied to reduce ghost or double images. They exhibit superior flatness and are more tolerant of large field angles. The manufacturing process used by Abrisa Technologies insures a low absorption rate of 5% typical.
Non-Polarizing Plate Beam Splitter Specifications:
1-side Anti-Reflective Coated:
Angle of Incidence: 45°
Reflectance: <1.25% at 450-650nm (typical)
Opposite side coated with a hybrid multi-layer beam splitter:
Angle of Incidence: 45°
Reflectance/Transmittance: 48% ±10.0% at 450-650nm (typical)
Substrate Material: Soda Lime, Borofloat, Fused Silica and host of other optical glasses
Thicknesses: As thin as 0.1mm up to 5" or more
Size: As small as ¼" square up to 24" standard - consult factory for larger size requirements.
About Abrisa Technologies: Abrisa Technologies is headquartered in Santa Paula, California and is comprised of three divisions that provide precision optical products and services. The divisions include; Abrisa Industrial Glass, Inc., Sycamore Glass Components, and ZC&R Coatings for Optics. As a market leader in optical coatings and high quality precision glass fabrication, Abrisa Technologies is dedicated to providing premier customer service and cost-effective products that fit each customer's exacting requirements. www.abrisatechnologies.com
|
|
|
|
|
|
