Front Surface Mirrors from Sycamore Glass Components Provide Increased Reflectivity |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Abrisa Technologies
200 S. Hallock Dr.
Santa Paula, CA, 93060
USA
Press release date: June 1, 2011

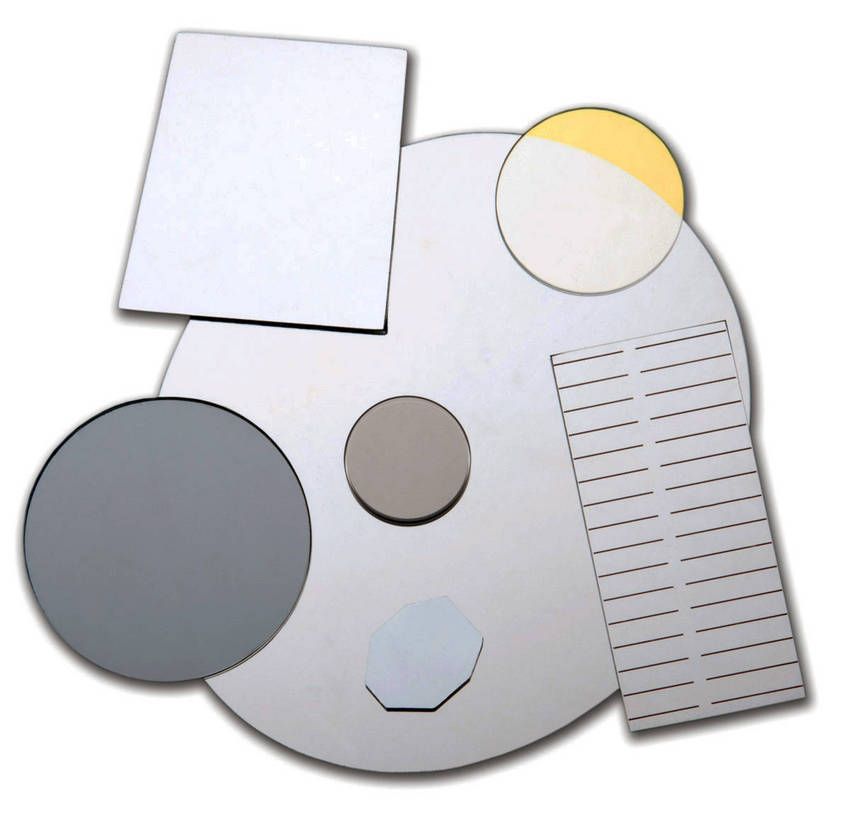

Sycamore Glass Components, a division of Abrisa Technologies provides front surface mirrors or first surface mirrors for a broad scope of optics applications. These mirrors have a long product life, superior durability, and can be cleaned easily.
Front surface mirrors by Sycamore Glass Components have over-coated dielectric layers that are vacuum deposited on the surface of a clear glass substrate to increase reflectivity and protect against humidity and abrasion. The sharper image created by a front surface mirror lacks the ghosting effect of a conventional mirror.
The substrate of choice for a front service mirror is float glass with a typical flatness and irregularity of 4 to 6 waves per inch. Typical thicknesses that are available from stock are 1mm, 1.6mm, 2.3mm, 3mm, 5mm, 6mm, and 10mm. Front surface mirror sizes are available in dimensions up to 74" x 130" or 1880 mm x 3320 mm in 3mm and 6mm thicknesses.
Enhanced aluminum mirror coatings reflect from 85% to 97% over the visible spectrum (400-700 nm)
Protected gold mirror coatings reflect an average of 97% over a broader spectrum (700-2000 nm)
Front surface mirrors provided by Sycamore Glass Components can be used in such applications as:
Industrial/Office Automation
- Photocopiers & document scanners
- Facsimile machines & laser beam printers
- Audio visual equipment & point-of-purchase scanners
- Cameras & analytical instruments
Military training simulators
Telescopes
Projection & broadcasting equipment
Front surface mirror coatings offered by Sycamore Glass Components conform to MIL-C-48497, MIL-M-1350BC, and MIL-STD-810C.
|
|
|
|
|
|
