Pushbutton Switches

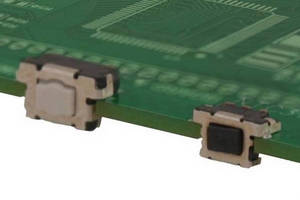

Tact Switches feature board edge mounting design.
Pushbutton Switches

Tact Switches feature board edge mounting design.

Supplied with SPST, Off-On, momentary configuration, TL4100 and TL4105 series are suited for handheld devices and have life expectancy rating of up to 1,000,000 cycles. Max initial contact resistance is 100 mW for TL4100 and 1 W for TL4105, but both series feature 100 MW min insulation resistance at 500 Vdc, dielectric strength of 250 Vac for 1 min, and contact rating of 50 mA @ 12 Vdc. Operating...

Read More »
Piezoelectric Switches deliver prolonged pulse.
Pushbutton Switches

Piezoelectric Switches deliver prolonged pulse.

Requiring only 2 wires, normally open prolonged pulse PBA switches can directly replace electromechanical switches in demanding environments such as medical, testing, and mining equipment; food preparation; and remote controls. PBA C function mimics behavior of standard switch; length of time for which actuator is pressed correlates diectly to length of output response (up to 20 sec). Sealed and...

Read More »
Split Image Switch Assembly offers NVIS compatibility.
Pushbutton Switches

Split Image Switch Assembly offers NVIS compatibility.

Incorporating NVG Green-B light filters into Series 600 Quad Lamp/LED pushbutton switch series, Model SW44752 offers Night Vision Imaging System compatibility. Series 600 has ratings of 2.0 A resistive and 0.5 A inductive at 30 Vdc or 115 Vac. Requiring 2 lb of operating pressure, switches have minimum rated life of 100,000 actuations. Units are available with various lens cap, lens base, and...

Read More »
Pushbutton Cover provides sound and/or wireless signal alerts.
Pushbutton Switches

Pushbutton Cover provides sound and/or wireless signal alerts.

Molded from polycarbonate material, supervised cover with sound (STI-6517S) or with sound and wireless transmitter (STI-6517SW) mounts directly into STI Stopper® Station series pushbuttons. When STI-6517S is lifted to gain access to button, selectable 65 or 85 dB alert sounds. When STI-6517SW is lifted, selectable alert sounds and wireless signal is sent to receiver, which subsequently...

Read More »
Illuminated Square Pushbutton comes in metal die cast housing.
Pushbutton Switches

Illuminated Square Pushbutton comes in metal die cast housing.

Available in multiple color options, RP8400 series is sealed to IP65 and has threaded panel mount design. Respective contact resistance (initial max) and insulation resistance (min at 500 Vdc) values are 50 mW and 1,000 MW. Offering life expectancy of 500,000 operating cycles at full load, switch has contact rating of 125 mA @ 125 Vac and 100 mA @ 50 Vdc; dielectric strength of 1,500 Vac RMS; and...

Read More »
Safety Interlock Door Switches have slim, 17 mm wide design.
Pushbutton Switches

Safety Interlock Door Switches have slim, 17 mm wide design.

Designed to fit in narrow spaces subject to water washdown cleaning, D4GS-N Slim Safety Door Switches feature IP67 protection and operate from -30 to +70°C without icing. Reversible design enables front or rear mounting, and operation key with rubber mounting holes absorbs vibration as well as shock. Resistant to vibration and shock, tongue-actuated switches are rated to provide 1,000,000...

Read More »
Control Box Stations accept variety of buttons and switches.
Pushbutton Switches

Control Box Stations accept variety of buttons and switches.

Using Series BDF, operators and maintenance personnel can E-stop, control start up, reset, and select appropriate mode of machine operation in single housing. Units feature slim 40 mm design, permitting mounting on machine door frame. Each station has up to 4 positions for variety of controls including E-stop buttons, pushbuttons, mushroom buttons, LED indicator lights, and selector/key selector...

Read More »
Scroll Wheel Switches suit consumer and navigation applications.
Pushbutton Switches

Scroll Wheel Switches suit consumer and navigation applications.

Available in 2 versions, 3-way TSW A Series provides one central select and 2-way 360° rotation, while 7-way TSW B Series features one central select and 2-way 360° rotation with 4 additional tactile directions on outside ring. All units offer push and rotary functions with 24 detents at 12 pulses. Rated 1 mA at 10 Vdc with max contact resistance of 300 mW, switches are suited for...

Read More »
E-Stop Switches are available with protective shrouds.
Pushbutton Switches

E-Stop Switches are available with protective shrouds.

In addition to featuring modular components that allow for various configurations up to 6 NO/6 NC arrangements, 22.5 mm Series 04 and Series 44 E-Stops are available with protective shrouds in 50 and 83 mm versions. Latter is designed to meet SEMI S2-93/12.4c requirement by featuring OD of over 3 in. to allow for palm actuation. Both shrouds, made of Lexan®, incorporate anti-rotational notch...

Read More »
Miniature Tact Switch measures 3.0 x 2.6 x 0.65 mm.
Pushbutton Switches

Miniature Tact Switch measures 3.0 x 2.6 x 0.65 mm.

Available with operating force options of 100 and 160 gf, TL3700 series comes in SPST, Off-On configuration and has 100,000 cycle life expectancy. Characteristics include 20 mA, 15 Vdc contact rating; 500 mW contact resistance; 100 MegaW min insulation resistance at 500 Vdc; and 250 Vac dielectric strength (1 min). Operating from -40 to +85°C, switch offers 0.15 mm travel and suits A/V,...

Read More »
