Electronic Components & Devices

Electronic Amplifiers

Low-Noise Amplifier suits cellular, LTE base stations.

Supplied in 2.0 x 2.0 x 0.75 mm SMT QFN package, MGA-635P8 operates from 2,300-4,000 MHz and can be used in various of cellular applications. Noise figure is 0.56 dB, 0.75 dB max, at 2,500 MHz, and output third-order intercept, is 35.9 dBm at 2,500 MHz while operating from 5 V with 56 mA bias current. Built on 0.25 micron, GaAs Enhancement-mode pHEMT, product offers built-in active bias...

Read More »
Board Extenders

Open Architecture Backplanes, Extenders and Custom Designs

Verotec offers a wide range of standard backplanes and extender cards for VPX, VME, VME64, VXI and VXS applications, available as either stand-alone components, or integrated into thermally managed systems with subracks, enclosures and power supplies from its range. In addition to supporting VMEbus and its later derivatives, backplanes conforming to the requirements of cPCI, PCI, ATCA and...

Read More »
Power Supplies

Induction Heating Power Supplies range from 2-25 kW.

With output frequency range of 40-400 kHz, UltraHeat W Series accommodates wide range of loads. Output circuit is designed to automatically tune to parameters of load, optimizing output performance. Units are suitable for heat treating, bonding, annealing, and hardening as well as brazing, sealing, soldering, tempering, and shrink fitting.

Read More »
Stamped Spring Pin Socket enables UART testing to 5 Mbps @ 1.8 V.
Electrical Contactors

Stamped Spring Pin Socket enables UART testing to 5 Mbps @ 1.8 V.

Designed for testing 7 x 7 mm QFN packages with 0.5 mm pitch, 48 positions, and center ground pad, CBT-QFN-7002 addresses requirements for testing UART serial to parallel data converter. Contactor consists of stamped spring pin with 26 g actuation force per ball and cycle life of 500,000 insertions; self inductance is 0.88 nH, insertion loss is less than 1 dB at 15.7 GHz, and capacitance is 0.097...

Read More »
VCO operates at 2,175 MHz with 0.5-4.5 V control voltage.
Oscillators

VCO operates at 2,175 MHz with 0.5-4.5 V control voltage.

Packaged in 0.5 x 0.5 in. SMD package, model CVCO55CC-2175-2175 features typical phase noise of -120 dBc/Hz at 10 kHz offset and offers output power of +7 dBm typical. It accepts input voltage of 8 V and consumes max current of 28 mA. Second harmonic suppression is -15 dBc, while pulling and pushing are minimized to 2.0 MHz and 1.0 MHz/V, respectively. Applications include in digital radio...

Read More »

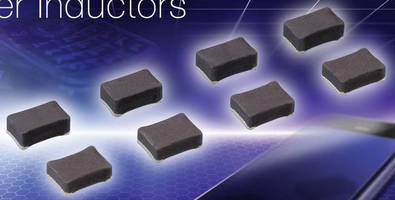

Compact Power Inductors offer optimized DC bias characteristics.
Inductors

Compact Power Inductors offer optimized DC bias characteristics.

With respective DC resistance ranges of 0.070-0.265 W and 0.09-0.33 W, BRL2515 measures 2.5 x 1.5 mm with max height of 1.2 mm and BRFL2518 measures 2.5 x 1.8 mm, with max height of 1.0 mm. Both RoHS-compliant, wire-wound power inductors operate from -25 to +105°C and are designed for DC-DC converter applications in mobile devices such as cell phones, smart phones, DSCs, and portable music...

Read More »
Low-Pitch Terminal Strip conserves PCB real estate.
Electrical Connectors

Low-Pitch Terminal Strip conserves PCB real estate.

Razor Beam(TM) .0315 in. pitch High Speed/High Density Hermaphroditic Strip (LSEM Series) comes in right-angle and vertical orientations for parallel, perpendicular, and coplanar applications. Pitch, row-to-row, and profile aspects conserve PCB real estate on X, Y, and Z axes. Optimized for speed, blade-and-beam style contacts also offer undercut retention notches for increased withdrawal force....

Read More »
Miniature L Circuit EMI Filter has hermetic, solder-in design.
EMI / RFI Filters

Miniature L Circuit EMI Filter has hermetic, solder-in design.

Designed to provide inductance and series resistance for optimal transient performance, L circuit EMI filter has .156 in. OD, .128 in. ID, and .200 in. body length. Total overall length is .715 in., and monolithic capacitor construction features glass seal on one end. Feed-through, solder-in filter, suited for microwave and RF applications with space concerns, provides filtering from 10 kHz to...

Read More »
Controls and Controllers

LED Driver provides continuous, 1% dimming for LED fixtures.

Available in compact and stick form factors, Hi-lume® A-Series supports constant-current and constant-voltage outputs over wide range of current and voltage levels for driving LED loads up to 40 W. Unit features precision microprocessor control and integral thermal management. Operating from 120-277 V input, driver installs into new construction or existing spaces, and works with ELV...

Read More »
