Wet/Wet Differential Pressure Transducer ranges from 1-500 psi.

Press Release Summary:

Featuring 316L stainless steel wetted parts, Model D5100 has 2 pressure ports for high and low pressures and is available with amplified or mV output. Amplified model is CE certified and includes reverse polarity wiring protection. Comprising piezoresistive differential pressure sensor and electronics of UltraStable(TM) pressure transducer, Model D5100 offers pressure linearity as low as ±0.1%, operating temperature of -40 to +125°C, and various output/fitting/electrical configurations.

Original Press Release:

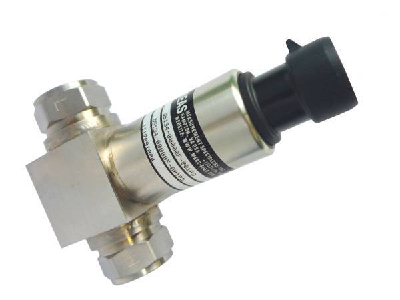

D5100 Industrial Pressure Transducer True Wet/Wet Differential

Measurement Specialties, Inc. (NASDAQ: MEAS), an expert in sensor design and manufacturing, introduces its new model D5100, a true wet-wet differential industrial pressure transducer. The transducer has two pressure ports for high and low pressures and all wetted parts are made of 316L stainless steel. It has a full scale differential pressure range from 1 psi (0.07 Bar) through 500 psi (35Bar) and is available in 2 versions: amplified and mV output. The amplified model is CE certified and includes reverse polarity wiring protection.

The D5100 embodies our reputable piezoresistive low pressure capable differential pressure sensor and proven robust electronics of our UltraStable(TM) series pressure transducer. Its modular design prompts easy configuration with the maximum usage of our standard components and proven processes, thus results in a reliable and yet cost-competitive product.

The D5100 features: a rugged construction that can withstand up to 50g shock/20g vibration, excellent stability, pressure linearity as low as ±0.1%, up to -40°C to +125°C operating temperature range, and various output/fitting/electrical configuration options. Applications that the D5100 include but are not limited to: process controls, tank level measurement, filter performance monitoring, corrosive fluids and gas measurement systems, and flow measurements.

About Measurement Specialties

Measurement Specialties, Inc. designs and manufactures sensors and sensor-based systems. The company produces a wide variety of sensors and transducers to measure precise ranges of physical characteristics such as pressure, force, vibration, torque, position, temperature, humidity, fluid properties, mass air flow and photo optics. Measurement Specialties uses multiple advanced technologies - including piezo-resistive, electro-optic, electro-magnetic, variable reluctance, magneto resistive, digital encoders, thermistors, thermocouples, RTDs, capacitive, resonant beam, application specific integrated circuits (ASICs), micro-electromechanical systems (MEMS), piezoelectric polymers and strain gauges - to engineer sensors that operate accurately and cost effectively in our customer's applications.
