Weighing Module connects belt scales to automation systems.

Press Release Summary:




Siwarex FTC acquires weighing data with resolution of 16 million increments and measuring rate of 100 Hz. Accuracy is guaranteed up to 30° angle of inclination of belt. Device contains 8 accumulator memories whose contents can be stored on micro memory card. Event recorder with time stamp records progress and status of weighing operations, storing last 100 messages in diagnostics buffer. Module is suited for acquisition of flow rate, conveyed quantity, and belt load.



Original Press Release:



Simple Connection of Belt Scales to the Automation System

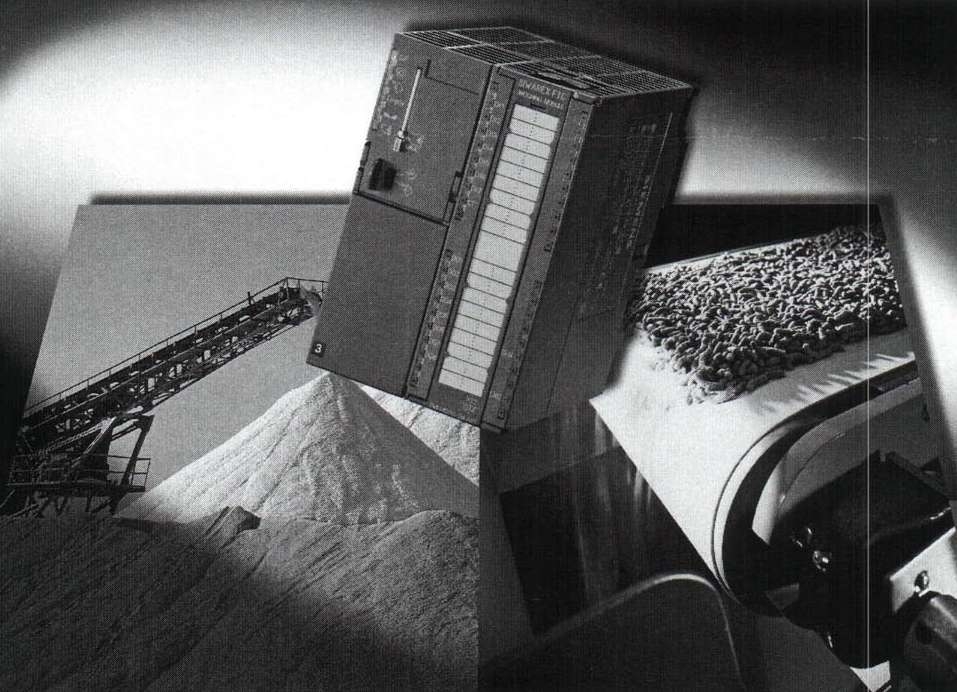

From now on, belt scales can be integrated into the Simatic automation network with a new weighing module from Siemens Automation and Drives (A&D). Siwarex FTC (Flexible Technology Continuous Weighing) acquires weighing data with a resolution of sixteen million increments and a measuring rate of 100 Hertz. This high accuracy is guaranteed up to a 30-degree angle of inclination of the belt. Typical applications include acquisition of flow rate, conveyed quantity and belt load, as well as loading of material. Siwarex FTC is used in Simatic S7-300 controllers or Simatic ET 200M distributed I/O stations. With complex automation tasks, the new weighing module is integrated into the Simatic PCS 7 process control system.

Extensive diagnostics functions monitor the weighing process: For example, the "event recorder with time stamp" records the progress and status of weighing operations, storing the last 100 messages in a diagnostics buffer. The device contains eight accumulator memories whose contents can be stored on the micro memory card. The load cell and the entire cabling system are also permanently monitored.

Configuring software is available free on the Internet as a starter package. With this, users can quickly get their belt scales up and running, even without programming knowledge. The belt scale is integrated into the PCS 7 process control system using off-the-shelf standard CFCs (Continuous Function Charts) and faceplates.

Further information can be found on the Internet at: http://www.siemens.de/siwarex
