Watch Crystal fits real time clocks.

Press Release Summary:



CSX327 miniature watch crystal measures 7.0 x 1.5 mm with low profile of 1.4 mm. Tolerance is -20 to +20 ppm at 77 deg F and frequency stability is -0.03+/-0.01 ppm over -40 to 185 deg F. Turnover temperature range is 68 to 86 deg F and operating temperature is -40 to 185 deg F. Minimum insulation resistance is 500 MD at 100 Vdc and maximum equivalent series resistance is 65 kohms. Crystal is available in 3,000 unit tape and reel for automatic assembly systems.



Original Press Release:

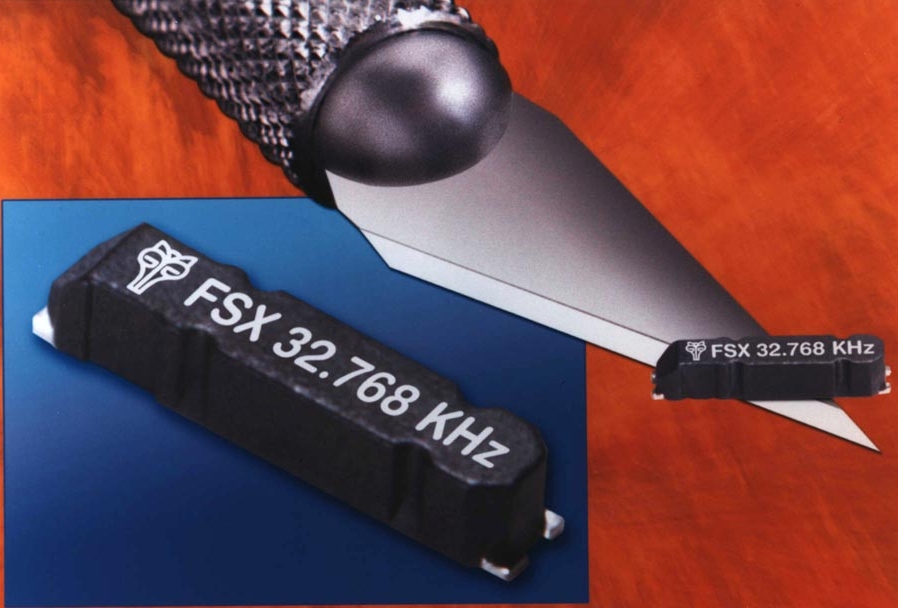

New Ultra Low Profile Miniature Watch Crystal From Fox Is Lowest Profile Standard Unit Available For Real Time Clock Applications


Fort Myers, FL, April 2002- Fox Electronics has released a miniature watch crystal that measures just 7.0 mm x 1.5 mm with an extremely low profile of 1.4 mm, making it the lowest profile standard watch crystal currently available on the market for real time clock (RTC) applications. The FSX327 crystal is an extremely cost-effective alternative to custom miniature, low profile watch crystals used in space-confined RTC applications.

With a frequency of 32.768 kHz, the new FSX327 is optimized for a 12.5 pF load capacitance. Frequency tolerance is -20 to +20 PPM at 25°C (77°F) and frequency stability is -0.03±0.01 PPM over -40°C to +85°C (-40°F to 185°F). Turnover temperature range is +20°C to +30°C (68°F to 86°F); operating temperature is -40°C to +85°C (-40°F to 185°F); and storage temperature is -55°C to +125°C (-67°F to 257°F). Minimum insulation resistance is 500 MD at 100 VDC and maximum equivalent series resistance is 65 kOhm.

The FSX327 crystal is available in a 3,000-unit tape and reel for automatic assembly systems.

Pricing for the FSX327 crystal begins at $0.52 in quantities of 3,000. Delivery is stock to 8 weeks ARO.

For additional information, contact Customer Service, Fox Electronics, 5570 Enterprise Parkway, Fort Myers, FL 33905. Tel: 888/GET-2-FOX; Fax: 941/693-1554; E-mail: sales@foxonline.com; Web: www.foxonline.com.
