Voltage Controlled Oscillator operates from 3,015-3,045 MHz.
Press Release Summary:
Packaged in 0.5 x 0.5 in. SMD package, CVCO55CC-3015-3045 VCO features control voltage range of 0.5-4.5 V, typical phase noise of -109 dBc/Hz at 10 kHz offset, and output power of 0 dBm. Input voltage is 5 V, with max current consumption of 35 mA. Pulling and Pushing are 0.5 and 0.3 MHz/V, respectively, and second harmonic suppression is at -25 dBc typ. Applications include in digital radio equipment, fixed wireless access, and satellite communications systems.
Original Press Release:

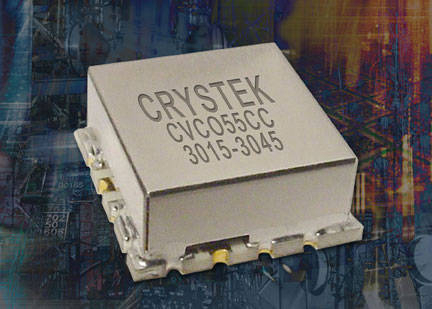

New 3015-3045 MHz VCO from Crystek Corporation
Fort Myers, FL - May 15, 2009 - Crystek's CVCO55CC-3015-3045 VCO (Voltage Controlled Oscillator) operates from 3015 MHz to 3045 MHz with a control voltage range of 0.5V~4.5V. This VCO features a typical phase noise of -109 dBc/Hz @ 10KHz offset and has excellent linearity. Output power is typically 0 dBm.
Engineered and manufactured in the USA, the model CVCO55CC-3015-3045 is packaged in the industry-standard 0.5-in. x 0.5-in. SMD package. Input voltage is 5V, with a max current consumption of 35 mA. Pulling and Pushing are minimized to 0.5 MHz and 0.3 MHz/V, respectively. Second harmonic suppression is -25 dBc typical.
The CVCO55CC-3015-3045 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
For pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com.
Crystek Corporation® is a leading manufacturer of Frequency Control Products - quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), VCXOs (voltage controlled crystal oscillators), and TCVCXOs (temperature compensated voltage controlled oscillators). Founded in 1958, Crystek's capabilities include custom manufacturing of quartz crystal and oscillators from quartz bars through packaged and tested finished products. Crystek's facilities include climate controlled manufacturing plants and state-of-the-art product validation centers. Crystek's on-site warehousing facility boasts an inventory of more than five million items, which allows the company to respond to most customer requests on a next day basis.
For more information, contact sales at
Crystek Corporation,
12730 Commonwealth Drive,
Ft. Myers, FL 33913.
Tel: 800-237-3061 or 239-561-3311;
Fax: 239-561-1025;
E-mail: sales@crystek.com;
Web: www.crystek.com.
