Voltage Controlled Oscillator delivers +7 dBm output power.

Press Release Summary:




Operating from 2,610-2,625 MHz with control voltage range of 0.5~4.5 V, Model CVCO55CC-2610-2625 features typical phase noise of -120 dBc/Hz at 10 KHz offset. Input voltage is 8 V, with max current consumption of 30 mA, and pulling and pushing are minimized to 2.0 MHz and 0.2 MHz/V, respectively. Housed in 0.5 x 0.5 in. SMD package, device is suited for digital radio equipment, fixed wireless access, satellite communications systems, and base stations.



Original Press Release:



New 2610-2625 MHz VCO

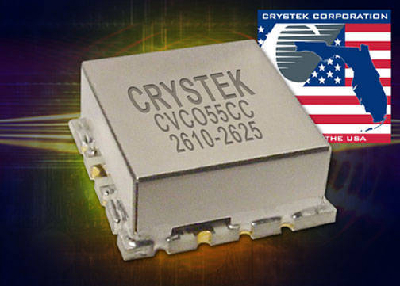

Fort Myers, FL – Crystek's CVCO55CC-2610-2625 VCO (Voltage Controlled Oscillator) operates from 2610 MHz to 2625 MHz with a control voltage range of 0.5V~4.5 V. This VCO features a typical phase noise of -120 dBc/Hz @ 10 KHz offset and has excellent linearity. Output power is typically +7 dBm.



Engineered and manufactured in the USA, the model CVCO55CC-2610-2625 is packaged in the industry-standard 0.5-in. x 0.5-in. SMD package. Input voltage is 8 V, with a max. current consumption of 30 mA. Pulling and Pushing are minimized to 2.0 MHz and 0.2 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.



The CVCO55CC-2610-2625 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.



For pricing details, contact Crystek Corporation.



Family datasheets are available for download at www.crystek.com. For more information,

contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913.

Tel: 800-237-3061 or 239-561-3311; Fax: 239-561-1025; E-mail: sales@crystek.com;

Web: www.crystek.com.



Editor’s note: Crystek Corporation® has been providing frequency products since 1958, including quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), and VCXOs (voltage controlled crystal oscillators). Crystek operates two divisions dedicated to frequency control. Crystek Crystal is dedicated to the development and manufacture of frequency products using quartz-based resonators. Crystek Microwave develops of frequency control and support products for the microwave industry.



Reader Service Inquiries: Please forward to Sales at Crystek Corporation,

12730 Commonwealth Drive, Ft. Myers, FL 33913; E-mail: sales@crystek.com

(e-mail preferred). Thank you.
