VCO operates in 3,318-3,467 MHz range.
Press Release Summary:
With control voltage of 0.1-16 V, CVCO55CC-3318-3467 VCO has typical phase noise of -106 dBc/Hz at 10 kHz offset with typical output power at +5 dBm. Packaged in 0.5 x 0.5 in. SMD, it has input voltage of 8 V and maximum current consumption of 35 mA. Pulling and Pushing are minimized to 3.0 MHz and 0.5 MHz/V, respectively, while second harmonic suppression is -20 dBc typical. Applications include digital radio equipment, fixed wireless access, and satellite communication systems.
Original Press Release:

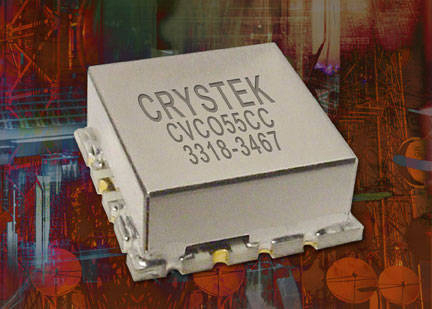

New 3318-3467 MHz VCO from Crystek Corporation
Fort Myers, FL - June 3, 2009 - Crystek's CVCO55CC-3318-3467 VCO (Voltage Controlled Oscillator) operates from 3318 MHz to 3467 MHz with a control voltage range of 0.1V~16V. This VCO features a typical phase noise of -106 dBc/Hz @ 10KHz offset and has excellent linearity. Output power is typically +5 dBm.
Engineered and manufactured in the USA, the model CVCO55CC-3318-3467 is packaged in the industry-standard 0.5-in. x 0.5-in. SMD package. Input voltage is 8V, with a max current consumption of 35 mA. Pulling and Pushing are minimized to 3.0 MHz and 0.5 MHz/V, respectively. Second harmonic suppression is -20 dBc typical.
The CVCO55CC-3318-3467 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
For pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com. For more information, contact sales at
Crystek Corporation,
12730 Commonwealth Drive,
Ft. Myers,
FL 33913.
Tel: 800-237-3061 or 239-561-3311;
Fax: 239-561-1025;
E-mail: sales@crystek.com;
Web: www.crystek.com.
Crystek Corporation® is a leading manufacturer of Frequency Control Products - quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), VCXOs (voltage controlled crystal oscillators), and TCVCXOs (temperature compensated voltage controlled oscillators). Founded in 1958, Crystek's capabilities include custom manufacturing of quartz crystal and oscillators from quartz bars through packaged and tested finished products. Crystek's facilities include climate controlled manufacturing plants and state-of-the-art product validation centers. Crystek's on-site warehousing facility boasts an inventory of more than five million items, which allows the company to respond to most customer requests on a next day basis.
