VCO offers 2nd harmonics suppression of -35 dBc.
Press Release Summary:
Model CRO3562A-LF in S-band operates at 3,560-3,564 MHz with tuning voltage range of 1.5-4.5 Vdc. Typical phase noise is -112 dBc/Hz at 10 kHz offset while typical tuning sensitivity is 8 MHz/V. Operating over temperature range of -40º to 85ºC, unit provides output power of 3.5 dBm at 5 Vdc supply while drawing 17 mA. It is available in standard MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in.
Original Press Release:

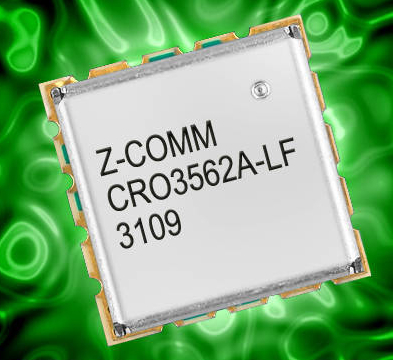

VCO: CRO3562A-LF Features Superior 2nd Harmonics Suppression
Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model CRO3562A-LF in S-band. The CRO3562A-LF operates at 3560-3564 MHz with a tuning voltage range of 1.5-4.5 Vdc. This VCO features a typical phase noise of -112 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 8 MHz/V.
The CRO3562A-LF is designed to deliver a typical output power of 3.5 dBm at 5 Vdc supply while drawing 17 mA (typical) over the temperature range of -40º to 85º C. This VCO features typical second harmonic suppression of -35 dBc and comes in Z-Comm's standard MINI-16-SM package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The CRO3562A-LF is also ideal for automated surface mount assembly and reflow.
CRO3562A-LF is well suited for satellite communication and fixed wireless applications that require superior 2nd harmonics suppression and ultra low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/ProductInfo.aspx?productid=CRO3562A-LF.
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
Part Number: CRO3562A-LF
Delivery: Stock-4 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support - mailto:applications@zcomm.com
Email Sales: mailto:sales@zcomm.com
URL: www.zcomm.com
