USB Battery Charger IC supports Green initiative.

Press Release Summary:



Based on 3 MHz switch-mode architecture, SMB329 also features TurboCharge mode to accelerate charging times while reducing thermal dissipation and wasted power. Parameters are programmable in non-volatile memory for power-up configuration and in volatile memory for in-system adjustments via I²C host interface. Supplied with instant-on power and real-time charge current monitoring features, IC provides means to accomplish true, universal USB charging and meet USB industry standards.



Original Press Release:



Summit Expands Family of Tiny, Programmable Switch-Mode Battery Chargers Featuring Fast and Efficient 'Green' Technology



Supports charging and safety standards and new battery technologies.
Instant-on power improves consumer convenience and reduces system cost.

Sunnyvale, Calif. - May 18, 2009 - Summit Microelectronics has expanded its third-generation programmable battery charger integrated circuit (IC) family with the introduction of the SMB329. Based on the award winning, highly-integrated SMB339 family, the SMB329 integrates additional features, such as "instant-on", even with a dead battery, and real-time charge current monitoring. Like its predecessors, the SMB329's parameters are programmable in non-volatile memory for power-up configuration, and in volatile memory for in-system adjustments via the I2C host interface. In addition, high-efficiency switch-mode operation and TurboCharge mode allow for thirty to fifty percent shorter charging times, while reducing thermal dissipation and wasted power by 80%. The SMB329 supports all relevant interface (USB2.0, USB OTG, USB charging, etc.) and safety (IEEE1725, JICS8714, etc.) standards, resulting in reduced development time and cost associated with system compliancy efforts. Additionally, the SMB329 supports the industry's environmental and Green efforts by enabling universal USB charging, eliminating electronic waste while dramatically reducing energy usage (www.summitmicro.com/mobilegreen).

Features
The SMB329 is based on a 3MHz, switch-mode architecture, with minimal external components, which allows for very efficient power delivery and extremely compact solution size. High-efficiency operation enables fast charging due to higher output/charge currents, while reduced thermal dissipation improves user comfort and system reliability. Furthermore, Summit's proprietary TurboCharge patent-pending technology enables high charge current, even from relatively low-power sources (example: up to 750mA output from 500mA USB source). As consumer devices continue to employ larger batteries, the SMB329 reduces charge time for consumer convenience.

The SMB329, like all products in the SMB339 family, provides the means to accomplish true, universal USB charging and to meet the various USB industry standards, without the need for additional hardware and software support. In addition, the SMB329 provides instant-on power from the input source to critical system components, allowing them to wake-up and perform system functions, even with a deeply discharged (dead), or missing battery.

The SMB329 provides integrated instant-on operation, improving consumer convenience without the cost and size penalty of alternate implementations.

The SMB329 also allows the host to directly measure charge current in real-time, thereby allowing the system to recognize the operating mode it is in, and making necessary adjustments for increasing battery life, monitoring for safety and communicating information to the user. The SMB329's Power Source Detection and Automatic Input Current Limit (patent pending) ensure that the charge current is safely and dynamically optimized regardless of power source capability (USB or AC/DC). The resulting improved user experience translates into fewer service calls, fewer merchandise returns and increased subscriber revenue for wireless carriers.

"The SMB329 further expands Summit's offering of intelligent, high-efficiency battery charging products with the integration of new, innovative features, that solve customers' system design challenges in a very cost effective way," stated George Paparrizos, Summit marketing director. "The SMB329 provides unparalleled design flexibility and integration to enable ultra-compact designs."

In addition to USB battery charging, the SMB329 (like all SMB339 family chargers) supports USB On-the-Go (OTG) with integrated VBUS power without additional components or cost. The SMB329's step-down converter, that normally operates in "forward mode" to charge the battery, can operate in reverse to boost the battery voltage to +5V for USB-OTG and deliver up to 500mA, exceeding the USB OTG Supplement Specification requirements. USB-OTG allows two portable USB devices (phones, digital cameras, etc.) to connect to and/or power each other without the presence of a host PC. This creates virtually unlimited opportunities for mobile connectivity, such as exchange of media files between portable devices or charging a Bluetooth headset from a mobile phone.

The SMB329 supports existing and emerging safety standards (IEEE1725, JISC8714 and others) for portable devices including the industry's most complete set of safety features: input/output current limits, input and battery over-voltage protection, battery and chip thermal protection, charge safety and watchdog timers, trickle charging, and status/fault monitors. In addition, the chip's parametric programmability allows the implementation of sophisticated embedded charging algorithms, further increasing system performance and reliability.

Applications
The SMB329 is ideal for any portable device, such as mobile phones, smartphones/PDAs, portable media/MP3 players (PMP), portable GPS navigation, portable game consoles, and digital cameras/camcorders (DSC/DCC). The features and integration of the SMB329 make it especially suited for portable devices that require compliancy with USB battery charging specifications, utilize higher-capacity batteries and feature very compact industrial designs.

The SMB329 operates with an input range from +3.5V to +6.2V input and safely withstands continuous input over-voltage up to +18V (non-operating), while protecting downstream circuitry. The SMB329 is offered in a tiny 2.3mm x 2.0mm, 20-ball, lead-free chip-scale (CSP) and in a 4x4 QFN-24 package with an operating temperature range of -30C to +85C.

Pricing and Availability
Available now in production quantities, the SMB329 is priced at $1.15 each in quantities of 10,000 units.

Design Software and Programmer for Prototype Development To speed user product development, Summit offers customers the SMB329EV companion evaluation board and a graphical user interface (GUI) software so designers can quickly see the features and benefits and design a prototype battery charging solution with the SMB329. This is a complete development tool that lets designers easily manipulate the characteristics of their systems. The SMB329EV design kit includes menu-driven Microsoft Windows (R) GUI software to automate programming tasks and also includes all necessary hardware to interface to the USB port of a laptop or PC.

Once a user completes design and prototyping, the SMB329EV automatically generates a HEX data file that can be transmitted to Summit for review and approval. Summit then assigns a unique customer identification code to the HEX file and programs the customer's production devices prior to final electrical test operations. This ensures that the device will operate properly in the end application.

About Summit Microelectronics
Summit Microelectronics is the leader in flexible, highly integrated power management solutions combining precision power regulation with sophisticated digital control in a single chip. The Company's devices are found in a variety of consumer, communications and computing applications.

Summit's unique programmable, non-volatile mixed-signal IC technology combined with a convenient GUI development environment allows for unparalleled functional and parametric flexibility in power supply design.

This flexibility applied to common problems such as dynamic voltage/current control and intelligent battery charging, allows for significant system performance improvement while realizing drastic reductions in design effort.

Digital programmability enables high integration and system flexibility in a single chip - impossible with conventional "hard-wired" analog power ICs. Additionally, this integration reduces the bill-of-materials yielding the lowest total system cost and size. Summit solutions address the biggest challenges facing OEM developers today: increasing system functionality, performance and complexity accompanied by shrinking development time cycles.

Summit Microelectronics actively supports industry efforts towards creating a greener planet. The Company's MobileGreen technologies significantly reduce the energy consumption and waste material footprint in our customers' products. Visit www.summitmicro.com/MobileGreen for more information.

The URLs for this product is
http://www.summitmicro.com/prod_select/summary/SMB329/SMB329.htm

The URL for this news release is
http://www.summitmicro.com/comp_info/press/09-0518

The URL for the product photo is
http://summitmicro.com/prod_select/summary/SMB329/SMB329.jpg

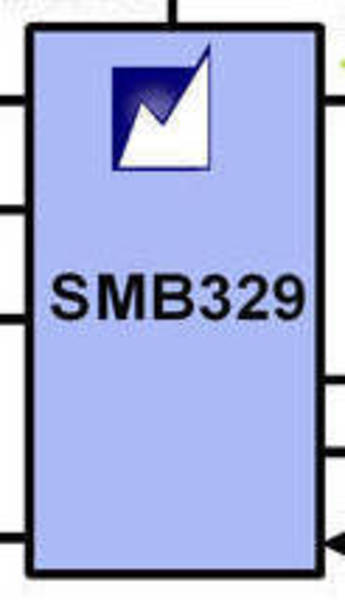

The URL for the product application block diagram is http://summitmicro.com/prod_select/summary/SMB329/SMB329_block.jpg
