Ultra-White LED has 3 x 3 mm footprint.
Press Release Summary:
Suited for applications in spotlights, desk lights, and ceiling floodlights, OSLON SSL LED features thermal resistance of 7 K/W, 100 lm/W efficiency, and beam angle of 80°. Ultra-white unit is offered with color temperature ranging from 5,700-6,500 K, while warm white has color temperature ranging from 2,700-4,500 K. With operating current of 350 mA, light source can achieve typical brightness of 110 lm in ultra-white, and maximum possible luminous flux of 130 lm.
Original Press Release:
The New Class of Light with OSRAM OSLON SSL LED
OSRAM Opto Semiconductors introduces one of the world's smallest LEDs in the 1 W sector

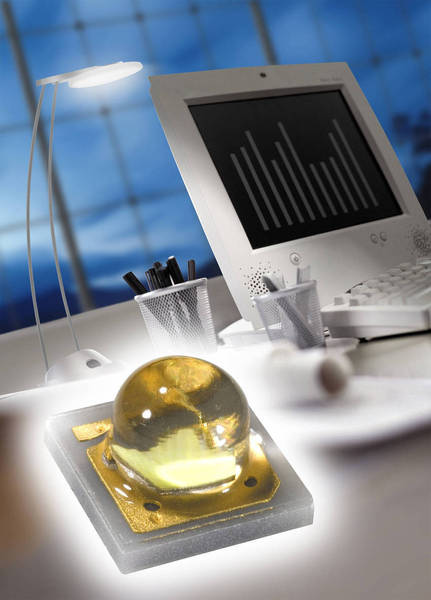

The new ultra-white OSLON SSL LED from OSRAM Opto Semiconductors may be small in size at only 3 x 3 mm, but it's big on performance. Using the latest chip technology, the 1 W OSLON SSL LED achieves impressive brightness and high luminous efficiency of 100 lm/W.
The OSLON SSL LED meets the required standard for general lighting usage and is reliably efficient, even at high currents. Thanks to its beam angle of 80°, it is perfect for injecting light into external lenses. The OSLON SSL LED is ideal for spotlights, desk lights and ceiling floodlights.
"Its ability to handle high currents efficiently enables our customers to create energy-efficient and cost-saving lighting solutions. The OSLON SSL LED has all the attributes to become the 'green' light source of the future," said Brian Terao, Director of SSL at OSRAM Opto Semiconductors, Inc.
The OSLON SSL LED has a low thermal resistance of 7K/W, which simplifies thermal management. Its compact size gives designers the flexibility to create extremely sophisticated solutions. In designs where more light is needed, several OSLON SSL LEDs can be combined to form a cluster. In addition to ultra-white (5700 to 6500 K), the LED will be available this summer in neutral white and warm white with a color temperature ranging from 2700 to 4500 K.
Manufactured with the latest chip technology, the OSLON SSL LED has an operating current of 350 Ma, which enables the light source to achieve a typical brightness of 110 lm in ultra-white (5700 and 6500 K), and a maximum possible luminous flux of 130 lm at present. At an operating current of 350 mA and a color temperature of 3000 K, the OSLON SSL LED can achieve efficiency of 75 lm/W and a brightness of 85 lm. Additionally, brightness is a remarkable 155 lm at an operating current of 700 mA (warm white). At these performance levels, the OSLON SSL LED can meet the demand for high-lighting levels using fewer LEDs with currents up to 1A.
For more information, please contact OSRAM Opto Semiconductors at info@osram-os.com or call 888-446-7726.
ABOUT OSRAM OPTO SEMICONDUCTORS
OSRAM is part of the Industry sector of Siemens and one of the two leading lighting manufacturers in the world. Its subsidiary, OSRAM Opto Semiconductors GmbH in Regensburg (Germany), offers its customers solutions based on semiconductor technology for lighting, sensor and visualization applications. OSRAM Opto Semiconductors has production sites in Regensburg (Germany) and Penang (Malaysia). Its headquarters for North America is in Sunnyvale, Calif. (USA), and for Asia in Hong Kong. OSRAM Opto Semiconductors also has sales offices throughout the world. In the 2008 fiscal year (to the end of September) OSRAM Opto Semiconductors employed more than 4600 people and achieved sales totaling 529 million euros.
For more information go to www.osram-os.com.
