UHF-Band VCO features ultra low phase noise.
Press Release Summary:
Operating from 350-700 MHz with 0-10 Vdc tuning voltage range, V350ME52-LF features typ phase noise of -99 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 45 MHz/V. RoHS-compliant voltage-controlled oscillator delivers typ output power of 4 dBm at 5 Vdc supply while drawing 13 mA (typ) over -40 to +85°C range. It comes in 0.5 x 0.5 x 0.22 in. MINI-14S package and is suited for automated surface mount assembly and reflow.
Original Press Release:

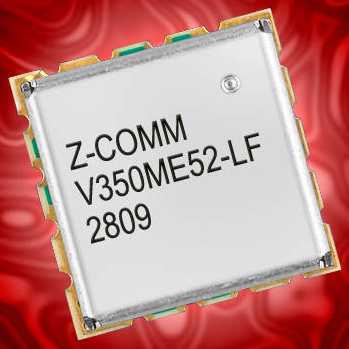

VCO: V350ME52-LF Features Ultra Low Phase Noise
Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model V350ME52-LF in UHF-band. The V350ME52-LF operates at 350-700 MHz with a tuning voltage range of 0-10 Vdc. This VCO features a typical phase noise of -99 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 45 MHz/V.
The V350ME52-LF is designed to deliver a typical output power of 4 dBm at 5 Vdc supply while drawing 13 mA (typical) over the temperature range of -40º to 85º C. This VCO comes in Z-Comm's standard MINI-14S package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The V350ME52-LF is also ideal for automated surface mount assembly and reflow.
V350ME52-LF is well suited for digital radio and satellite modem applications that require ultra low phase noise performance. Additional specifications for this product can be found on-line at www.zcomm.com/webstore/ProductInfo.aspx?productid=V350ME52-LF .
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
Part Number: V350ME52-LF
Delivery: Stock-3 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support - mailto:applications@zcomm.com
Email Sales: mailto:sales@zcomm.com
URL: www.zcomm.com
