Torque Reaction Arm protects operators from injury.

Press Release Summary:



Torque Reaction Arm uses Feather Lite tool balancing system to render tools weighing up to 20 lbs weightless. There is no tug when pulling tool down and no resistance when pushing tool up. Parallelogram arm structure maintains tool in vertical drive position. Tool clamp can be inserted in 2 different mounting positions so that arm can accomodate in-line tools and right angle nutunners. Maximum arm reach is 37 in.



Original Press Release:

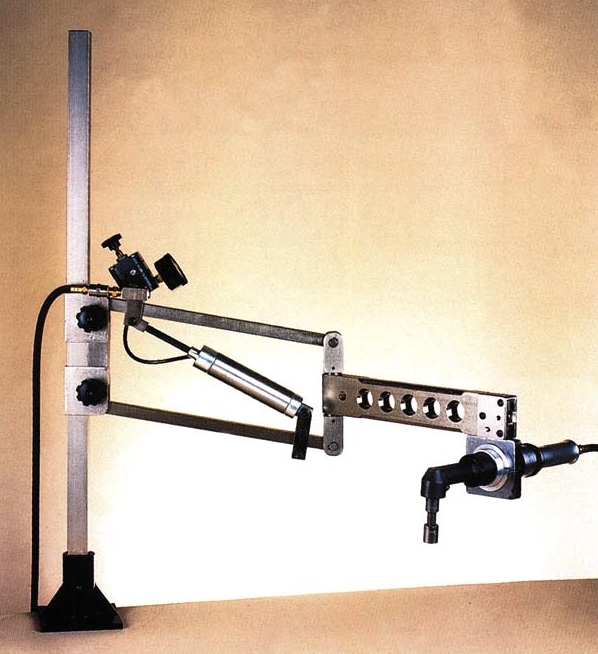

Heavy Duty Torque Reaction Arm


The new Nasco torque reaction arm is designed to protect operators from injury caused by screwdrivers and nutrunners generating up to 100 ft.-lbs. of torque. The new torque reaction arm uses Nasco's Feather Lite tool balancing system to render tools weighing up to 20 lbs. weightless. Therefore, there is no tug when pulling the tool down and no resistance when pushing the tool up. The parallelogram arm structure maintains the tool in a vertical drive position. The tool clamp can be inserted in two different mounting positions so that the arm can accomodate both in-line tools and right angle nutunners. Maximum arm reach is 37".

Price: VTSK-30-FL-HD $1,150.
VTSK36-FL-HD $1,200.
