Thermoelectric Controller covers -40 to +250°C range.

Press Release Summary:




OptoTherm HP20 enables ±0.01°C accuracy temperature control of thermoelectric modules and heating/cooling stages. Providing output current of up to 20 A at 12 Vdc, unit operates in bidirectional, H-bridge configuration, simplifying transitions between heating and cooling cycles. Front panel pushbutton interface allows manual operation, and when connected to PC, setpoint and actual temperatures can be plotted in real-time. Device is configured/operated via RS-232 interface.



Original Press Release:



OptoTherm Develops High Power Thermoelectric Controller

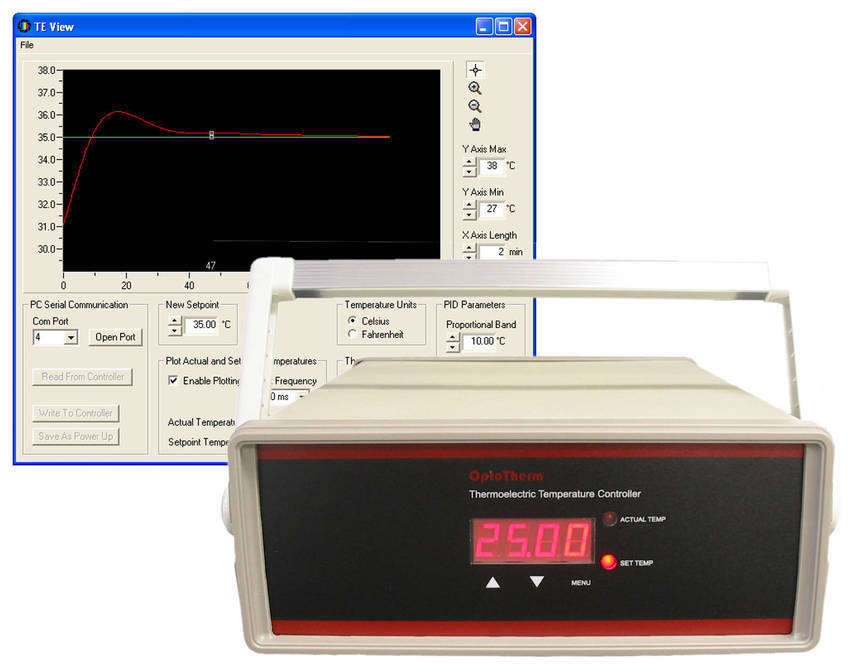

The OptoTherm HP20 provides precise temperature control (+/-0.01°C) of thermoelectric modules and heating/cooling stages within a temperature range of -40 to 250°C. The HP20 operates in a bi-directional, H-bridge configuration for smooth transitions between heating and cooling cycles and provides output current of up to 20 amps at 12 VDC. The HP20's PID capabilities enable rapid response to changes in operating conditions and provide tight control over a broad temperature range.

TE View, the included PC-based software, provides an intuitive interface for configuring and operating the controller via the controller's serial (RS-232) interface. Once the controller is configured, the computer can be disconnected and the controller can be operated manually using the front panel push-button interface. When the controller is connected to a PC, the setpoint and actual temperatures can be plotted in real time, providing a temperature history that can be saved in ASCII text format and imported into data analysis programs. Using plotted temperature data and the included step-by-step instructions, setting correct PID control parameters has never been easier.
