Thermocouple Calibrator features auto power off function.

Press Release Summary:

Capable of simulating voltage and thermocouple readings, compact, light weight, and rugged SignalCal 2 T/C comes with NIST Traceable calibration certificate. Unit can measure 8 types of thermocouples (R, S, B, E, K, J, T, and N) with accuracy of ±0.05%. Features include ability to select temperature output range in °C and °F, 9 V battery with estimated life of 25 hr, DC voltage output range of 100 mV or 1 V, measuring function that allows input range of -10 to 110 mV, and LCD display.

Original Press Release:

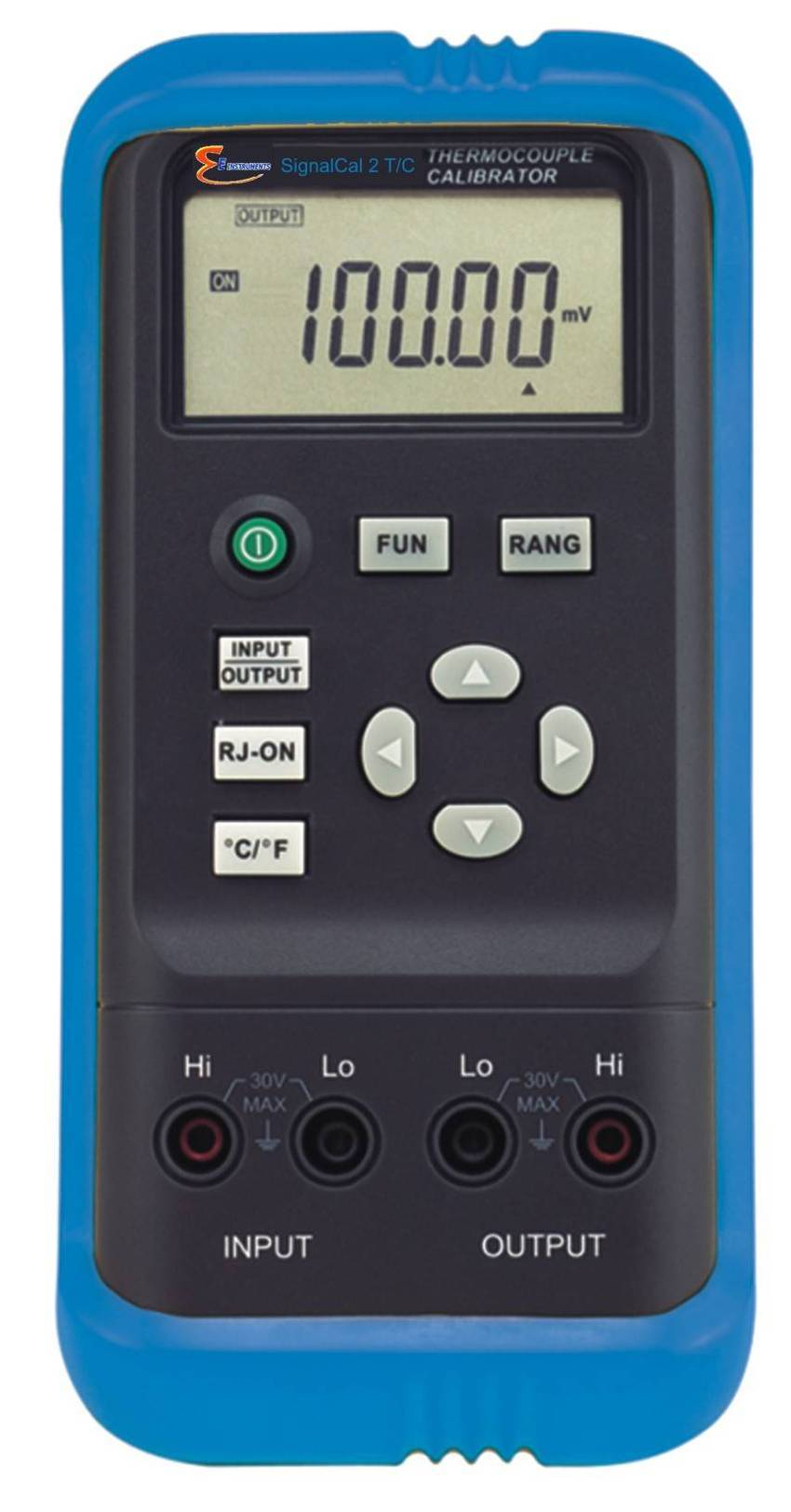

NEW SignalCal 2 T/C

Designed to meet your Thermocouple calibration needs

Simulates Voltage and Thermocouple Readings

o Rugged and Easy To Use

o Able to measure 8 Types of Thermocouples (R, S, B, E, K, J, T, and N)

o An accuracy of ± 0.05%

The NEW, SignalCal 2 T/C is a compact, light weight, and easy to use hand-held calibrator that simulates both voltage and thermocouple readings. It is built rugged and ships with a holster and calibration certificate included.

The SignalCal 2 T/C includes:

o The ability to select a Temperature Output Range in °C and °F

o A new 9V battery with an estimated battery life of 25 hours

o A DC Voltage output range of 100mV or 1V

o A measuring function that allows for an input range of -10 to 110mV

o An easy to use operator panel with an easy to read LCD display

o An automatically power off feature that turns off within 10 minutes if not used

o A low battery display symbol, so you know when to change the battery

o NIST Traceable Calibration Certificate included with every unit

For additional information, please contact

E Instruments,

Attention: Mark Tull,

172 Middletown Blvd., Suite B201,


PA 19047

Phone: 215-750-1212,

Fax: 215-750-1399
