Temperature Transmitter fits into DIN Form-B size heads.

Press Release Summary:




Packaged in polycarbonate housing with epoxy encapsulation, SureSignal WA 7000 Series operates from 7-35 Vdc with ambient temperature range of -40 to 85°C and temperature coefficient of 0.1 RH/C. Transmitter accepts 2-, 3-, and 4-wire RTD, thermistor, and thermocouple inputs and produces 4-20 mA, 0-10 V, and digital RS-232/485 output. Unit performs in industrial electromagnetic environments as well as hazardous-classified areas.



Original Press Release:

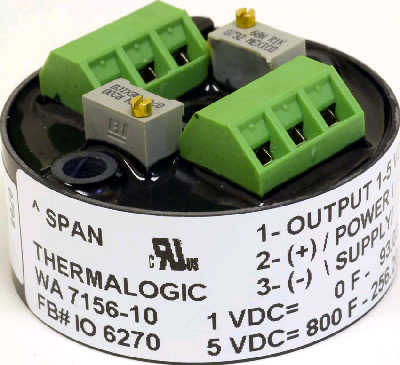

"Hockey Puck" Style DIN Form-B Mounting Industrial Temperature Transmitter



Product Highlights
Thermalogic Corporation, a leading electronic process control and sensor manufacturer specializing in OEM applications, introduces its latest members of the SureSignal Transmitter Line, the WA 7000 Series temperature transmitters. The WA 7000 series temperature transmitters address a host of applications and customer requirements. We have taken the rugged and reliable design of our SureSignal Transmitter Line and re-designed it to fit into DIN Form-B size connector heads.

o 2-,3-, and 4-wire RTD, thermistor, and thermocouple inputs
o 3 wire voltage or 2 wire loop powered current transmitter output custom scaled to range requirements
o Ultra high accuracy and very low drift characteristics
o Tough and reliable polycarbonate housing and epoxy encapsulation
o Screw terminal blocks standard
o Factory calibrated
o Four Year Warranty

Industrial Applications
The WA 7000 Series temperature transmitter works well for hazard-classified areas. The small, industry standard DIN Form-B size transmitter offers mounting flexibility for installation in virtually any encapsulation or explosion-proof connection head. In addition, the transmitter is designed to perform in tough industrial electromagnetic environments.

Specifications
o INPUT VOLTAGE: 7 - 35 VDC
o AMBIENT OPERATING RANGE: -40 to 85° C
o TEMPERATURE COEFFICIENT: 0.1% RH/C

Output Types:
o 4 - 20 mA
o Up to 0 - 10 volt range
o Digital, RS 232/485
o Special ranges and custom calibration available

About Thermalogic
Thermalogic began in 1971 as a supplier of rugged, encapsulated analog temperature control modules, which are still an ideal solution for numerous control situations. We expanded our product lines to include humidity controls and sensors in the early 1990's. Our line of control/sensor designs and products has steadily expanded over the decades, providing cost effective solutions ranging from large multiple zone digital to mini analog controls and many sensor capabilities tailored to exact job requirements.

For more information on the SureSignal line and all of our temperature and humidity control and sensor products please contact:

Thermalogic Corporation
22 Kane Industrial Dr.
Hudson, MA 01749
Toll Free 1-800-343-4492
Fax 1-978-562-6753
Email: sales@thermalogic.com
Website: www.thermalogic.com
