Steam Traps are offered in various configurations.

Press Release Summary:




Available with cast iron, ductile iron, or cast steel bodies, FTE Series Float and Thermostatic Steam Traps feature stainless steel float and lever mechanism, in-line reparability, and resistance to water hammer and corrosion. Stainless steel thermostatic element eliminates air binding, while below condensate level seat design prevents steam leakage. Offered in ½-2 in. sizes, products handle pressures from 5-464 psi and temperatures to 850°F.



Original Press Release:

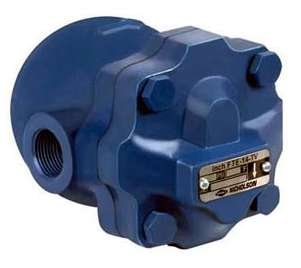

Nicholson Announces FTE Series Float and Thermostatic Steam Traps



Nicholson Steam Trap, of Walden, New York, announces their FTE Series, high capacity, float and thermostatic steam traps in sizes ½" to 2", for pressures from 5 PSI to 464 PSI and temperatures to 850°F.

The FTE Series Float and Thermostatic Steam Traps are available with cast iron, ductile iron or cast steel bodies and offer the following features: stainless steel thermostatic element which eliminates air binding; below condensate level seat design to prevent steam leakage; discharge capacity up to 31,000 gallons of condensate per hour; stainless steel float and lever mechanism for improved performance and prolonged steam trap service life; in-line reparability and resistance to water hammer and corrosion.

The Nicholson FTE Series Float and Thermostatic Steam Traps are available in several models and configurations. FTE Series Steam Traps are ideal for a broad range of industrial and commercial applications in the HVAC and industrial process industries including: stream process equipment, hot water generators, heat exchangers, absorption systems, unit heaters and cooking kettles.

Nicholson Steam Trap is an ISO 9001, ASME, ASME "U" Stamp, PED and TUV certified manufacturer of steam specialty and fluid control devices including: thermostatic, thermodynamic, mechanical, orifice and sanitary steam traps, air traps, condensate pumps, steam filters, steam separators, gasketed pipe union, fabricate and cast strainers, butterfly, check valves, triple duty valves and suction diffusers.

Contact information:
Matthew Mullen, Marketing Coordinator
Nicholson Steam Trap
150 Coldenham Road, Walden, NY 12586
Tel: (800) 210-1300
Email: sales@nicholsonsteamtrap.com
Website: www.nicholsonsteamtrap.com
