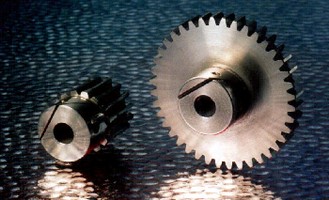

Spur Gears are produced to ISO Class 7 specs.

Press Release Summary:



Series S1VS05M, S1VS08M, and S1VS10M are 0.5, 0.8, and 1 Module 303 stainless steel spur gears with 20° pressure angle and Fairloc® integral hub fastener, which eliminates marred shafts. Fairloc® hub permits frequent phase adjustment, as well as timing and position adjustment while adding positive metal-to-metal fastening strength along hub sections. Units are stocked in sizes from 9-102 mm in diameter with 14-120 teeth and fit 4, 5, 6, 8, and 10 mm dia shafts.



Original Press Release:



New Series of 0.5, 0.8 & 1 Spur Gears From Sterling Instrument Feature Fairloc® Integral Hub Fastener



Contact: Herb Arum FOR IMMEDIATE RELEASE

New Hyde Park, New York- A new series of precision 0.5,0.8 and 1 Module 303 Stainless Steel spur gears, manufactured by Sterling Instrument (an ISO 9001 manufacturer), are produced to ISO Class 7 specs and feature the Fairloc® integral hub fastener. These 20° pressure angle metric gears are identified as the S1VS05M, S1VS08M and S1VS10M Series. Fairloc® is a patented integral hub fastener which eliminates marred shafts. The choice of Fairloc® hubs permits frequent phase adjustment, timing and position adjustment while adding positive metal-to-metal fastening strength along both hub sections. The Fairloc® integral hub fastener consists of two slots that are machined into the hub, one radially the other angularly, to create a transverse wedge which remains attached to the solid portion of the hub on one side. The resultant cantilevered clamping section has a tapped hole to accept a cap screw which passes through a clearance hole in the solid portion of the hub, and into a threaded hole in the transverse wedge section. As the screw is tightened, the cantilevered section clamps the shaft securely. The screw can be tightened and released repeatedly without marring the shaft or affecting its torque-transmitting abilities. They are stocked in 5 thru 8 mm face widths and are designed to fit shafts that are 4, 5,6, 8 and 10 mm in diameter. They are stocked in a range of sizes from 9 to 102 mm in diameter and from 14 through 120 teeth.

Detailed specifications are contained in SI Catalog 785 available free upon request from Sterling Instrument. This catalog can be viewed now on the Web at: www.sdp-si.com. or via mail request at: 2101 Jericho Turnpike, Box 5416, New Hyde Park, NY 11042-5416. Phone: 516-328-3300; Fax: 516-326-8827 Web: www.sdp-si.com
