Split Image Switch Assembly offers NVIS compatibility.
Press Release Summary:
Incorporating NVG Green-B light filters into Series 600 Quad Lamp/LED pushbutton switch series, Model SW44752 offers Night Vision Imaging System compatibility. Series 600 has ratings of 2.0 A resistive and 0.5 A inductive at 30 Vdc or 115 Vac. Requiring 2 lb of operating pressure, switches have minimum rated life of 100,000 actuations. Units are available with various lens cap, lens base, and lens filter materials, as well as multiple sockets that allow four T-1-¾ MFB based Green LEDs at 28 Vdc.
Original Press Release:
Electro-Mech's Split Image Lens Assembly Offers NVIS Compatibility
SOUTH EL MONTE, Calif. -- Electro-Mech's new SW44752 split image switch assembly offers Night Vision Imaging System (NVIS) compatibility by incorporating NVG Green-B light filters into its Series 600 Quad Lamp/LED pushbutton switch series. This new product introduction expands Electro-Mech's offerings into its highest quality mil-aero switch product line.

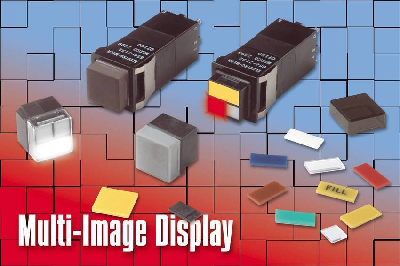

Series 600 Quad Lamp/LED Pushbutton Switches and Lenses offers many versatile and appearance options, including:
o Various lens cap materials for the top overcap to allow legends visible at all times or hidden legend lenses,
o Various lens base materials to provide exacting front panel appearances,
o Various lens filter materials to allow colored filters and illumination options,
o SW44752 includes NVG Night Vision Green-B filters
o Various legend options to provide different font styles & sizes and custom graphics capabilities,
o Multiple sockets allowing four T-1-3/4 (5mm) MFB based Green LED's at 28vdc
Series 600 products have ratings of 2.0 Amps resistive, 0.5 Amp inductive at 30VDC or 115VAC. Other features include an operating pressure of 2 lbs. (± 1 lb.), plunger travel of approximately 0.187" nominal, and a rated life of 100,000 minimum actuations.
Electro-Mech Components, Inc. is located 15 miles east of downtown Los Angeles in South El Monte, California and specializes in the design and manufacture of illuminated pushbutton switches, indicator lights, multi-switch interlocking assemblies, and aircraft audio control panel potentiometer+switch assemblies. The company operates its switch manufacturing and shelter manufacturing plants in Tijuana, B.C. Mexico.
For complete specifications and drawings on the SW44752 or the company's entire line of products contact Electro-Mech Components, Inc., 1826 Floradale Ave., South El Monte, CA 91733-3689, Phone (888) 442-7180, Fax (626) 350-8070,
