Spindles suit Swiss turning applications.

Press Release Summary:

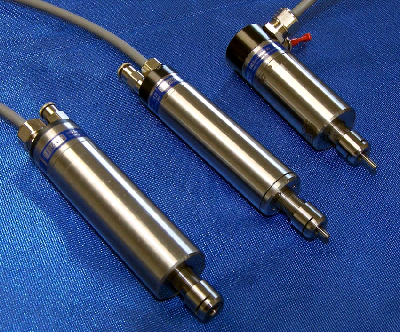

Utilizing synchronous, dc motor technology, 20 and 22 mm diameter Compact Spindles operate up to 100,000 rpm with 260 W continuous power. Units feature ultra precision with less than 2 microns run-out for optimal accuracy and surface quality. Available in ready-to-install kit with spindle and drive, electrical and pneumatic lines, and optional spindle mounting blocks, spindles are suited for micro-milling and drilling as well as engraving and fine milling.

Original Press Release:

IBAG Expands Swiss Turning Spindle Line

North Haven, CT January 3, 2008... IBAG North America announces the addition of new 20 and 22mm diameter high speed milling & drilling spindles for Swiss turning applications. Utilizing synchronous, DC motor technology, the spindles operate up to 100,000 rpm with 260 Watts continuous power and high torque. Ideal for machining applications involving micro-milling and drilling tools, as well as engraving and fine milling, these new, more compact spindles feature high rigidity and ultra precision (less then 2 microns run-out) to dramatically enhance surface quality, machining accuracy, and reduce the need for secondary operations. Models are available in standard length,shorter length than competitor models to better suit compact tooling areas as well as 90 degree versions. In addition, for turning center users, IBAG
offers a ready-to-install kit that includes the spindle and drive, all electrical
and pneumatic lines, and optional spindle mounting blocks. The 20 and 22 mm spindles complement the existing line of 25 mm diameter spindles from IBAG, offering high-speed, precision milling and drilling capabilities for smaller Swiss turning equipment.

Technical contact: Rick Testani
Tel. 203-407-0397
e-mail: RickT@ibagna.com

IBAG North America offers a full line of machine-tool high-speed spindles with complete repair and rebuilding services, as well as vacuum workholding systems to serve metalworking manufacturers and precision product and component applications.

Editorial Contact:
Client: Rick Testani, National Sales Manager
IBAG North America
Tel 203-407-0397 Fax. 203-407-0516
e-mail: rickt@snet.net
