Semi-Inline Manifold Valves feature engineered polymer construction.

Press Release Summary:




Suited for localized machine mounted applications, VTUB-12 Series is capable of flows up to 400 lpm or 14 scfm with max pressure of 8 bar or 120 psi. Engineered polymer design offers protection against corrosion. Valve terminal is available as multipin electrical connection, and as many as 35 valves can be installed on one terminal. With up to 10 m separation between controller and valve, connection cables enable valve terminal to be installed where it is needed.



Original Press Release:

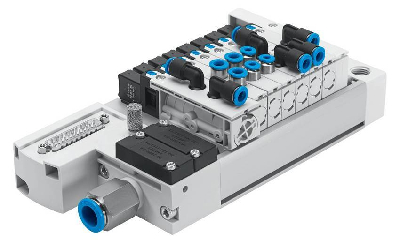

Engineered Polymer: Valve Range VTUB-12



Semi-Inline Manifold Valve Series

HAUPPAUGE, NY, - The new lightweight valve terminal, VTUB-12, is the new choice for economical valve terminals for localized machine mounted applications. The VTUB-12 series is capable of flowing up to 400 l/min or 14 scfm with a maximum pressure of 8 bar or 120 psi.

The valves are constructed with a high performance engineered polymer that is not only lightweight but extremely robust and has an enhanced protection against corrosion. The valves are mounted on a durable aluminum profile that is also extremely lightweight. The valve terminal is available as a multipin electrical connection for a clean and simple installation; as many as 35 valves can be installed on one terminal. The single screw and hook method of installation is not only simple but extremely resilient.
With one valve a multitude of functions are in store. The ability to create different incremental flow rates as well as different connection sizes and styles, including both inch and metric fittings, allow for decreased inventory levels without sacrificing flexibility. The available connection cables allow up to a 10 meter separation between the controller and the valve, allowing the valve terminal to be installed right where it is needed. Everything about this valve series is designed for ultra-high flexibility without a high price. The VTUB-12 is the ideal choice for machine mounted valve terminal installations.

For sales information, call Festo at 800-993-3786 and visit http://www.festo.com/us.
