Screen Printer targets applications in electronics industry.

Press Release Summary:




Accu-Coat(TM) Model 3230B Screen Printer features vertical action die set design with print repeatability of ±.0003 in. Suited for screen printing hybrid circuits, LCDs, and solar cells, bench top device utilizes microprocessor-based control system supporting setup, print/flood, flood/print, single, and double print with paste hopover. Setup adjustments include snap-off, print speed, and squeegee pressure.



Original Press Release:



New High Precision Semi-Automatic Screen Printer Now Available



SUMMARY

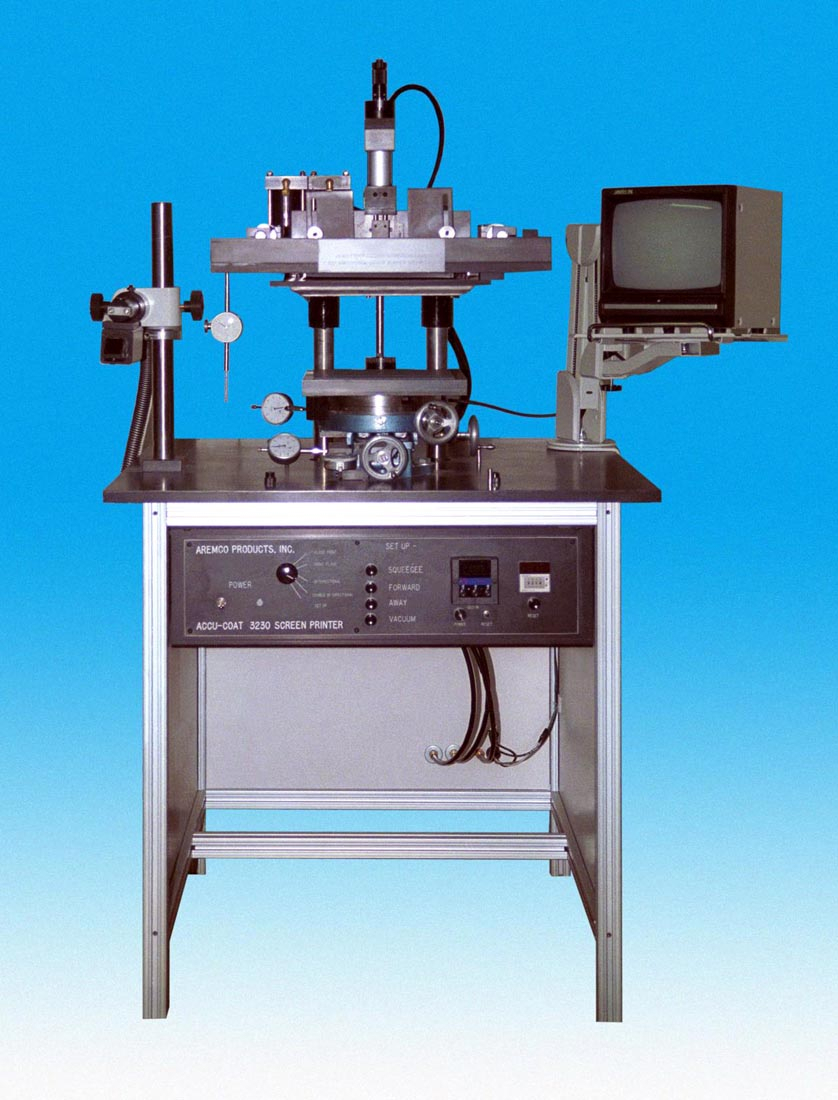

The new Accu-Coat(TM) Model 3230B Screen Printer is a microprocessor controlled, bench top unit manufactured by Aremco Products, Inc., for high precision screening of co-fired ceramic packages, multilayer hybrid circuits, photovoltaic solar cells, liquid crystal displays, and other metallizations.

FEATURES

The new Accu-Coat(TM) Model 3230B Screen Printer is a high precision, microprocessor controlled, bench top screen printer produced for a wide range of applications within the electronics industry. This unit features a vertical action die set design which guarantees a print repeatability of +/- .0003" over millions of cycles. The Model 3230B is capable of printing a wide range of substrates from thin ceramics, silicon wafers or flexible mylar films to tall components such as ceramic tubes.

The Accu-Coat(TM) 3230B utilizes a microprocessor-based control system which supports all modes of operation including setup, print/flood, flood/print, and single and double print with paste hopover. Print modes are software defined and easily customized. Setup adjustments including snap-off, print speed and squeegee pressure are extremely simple to control.

APPLICATIONS

The Accu-Coat(TM) Model 3230B is used to screen print a wide variety of components including:

o Hybrid Circuits
o Resistors & Capacitors
o Silicon Solar Cells
o LCD Glass
o Fuel Cells
o Co-Fired Ceramics

The Accu-Coat(TM) Model 3230B is an easy to use, economical, accurate and reliable system for screen-printing.

For more information about this advanced system, please contact Aremco's Technical Sales Department.
