Programmable Timer features panel-mount, IP65 construction.

Press Release Summary:




Model PTC-13 offers 11 operating modes applied to 2 timed output relay contacts. When only one timer is being used, other output acts as set of instantaneous changeover contacts. Single model, packaged in 1/16 DIN, IP65-rated housing, provides timing from 0.1 sec to 100 hr. In addition to 4 timing ranges and selectable up/down timing, unit features dual LED displays, external hold and reset, password security code, and programmable reset function.



Original Press Release:

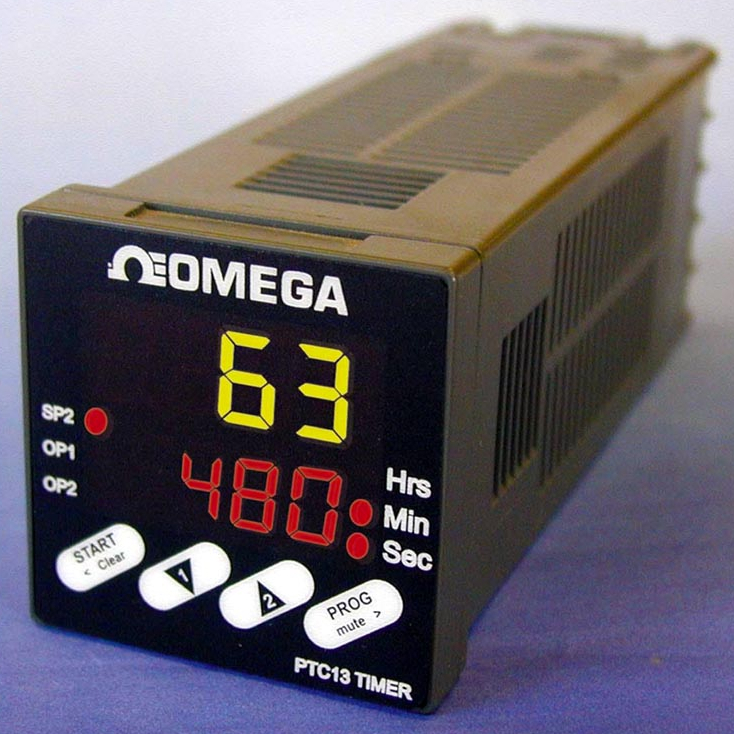

Panel Mount Programmable Timer - PTC-13



OMEGA's new PTC-13 is an extremely versatile product offering 11 operating modes applied to two timed output relay contacts. When only one of the timers is being used, the other output acts as a set of instantaneous changeover contacts. A single model provides timing from 0.1 seconds to 100 hours. The PTC-13 is a panel-mount programmable timer, packaged in a 1/16 DIN IP65 rated housing with 4 timing ranges and selectable up/down timing. OMEGA's PTC-13 also features dual LED displays, external hold and reset, has password security code, programmable reset function and its IP65 is water and dust protected.

Price is $202

For more information, go to the OMEGA Engineering Inc. web site at http://www.omega.com/toc_asp/frameset.html?book=Temperature&file=PTC-13
