Pressure Sensors / Detectors / Transducers
Pressure Transducer meets OSW stage monitoring specifications.
Share:
Press Release Summary:
Available in 0-5 psig through 0-100 psig pressure ranges, KPSI Model 501 SDI-12 meets requirements of USGS Office of Surface Water (OSW) accuracy specifications for stage monitoring. Submersible unit incorporates 1200 baud serial data interface and surge protection. Suited for remote environmental monitoring applications, 100% SDI-12 datalogger compatible transducer delivers accuracy of +0.05% FS total error band and repeatability as well as measurement level accuracy of +0.01 ft H2O.
Original Press Release:
New KPSI High Accuracy SDI-12 Transducer Meets Stringent OSW Stage Monitoring Specifications

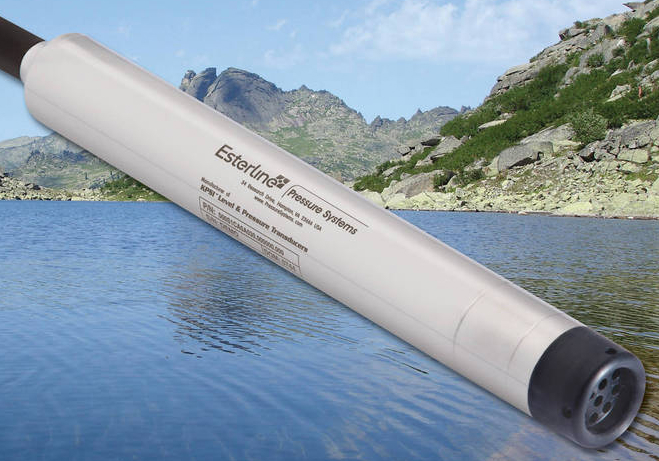

Hampton, Va. - Pressure Systems, manufacturer of precision level and pressure instrumentation for environmental water usage and water resource applications, now offers the KPSI Model 501 SDI-12 (serial data interface at 1200 baud) transducer that meets the demanding requirements of the United States Geological Survey (USGS) Office of Surface Water (OSW) accuracy specifications for stage monitoring.
Because field conditions such as high velocities, wave action or channel instability can adversely affect water level measurement, the OSW mandates that data be collected with the greatest accuracy feasible. Pressure Systems' KPSI Model 501 SDI-12 offers an excellent industry-leading accuracy of +0.05% FS total error band and repeatability as well as measurement level accuracy of +0.01 ft H2O and on-board surge protection.
The transducer's small rugged package is comprised of welded 316 SS construction and a unique self-sealing cable system that protects the unit in the event of accidental cable cuts. It is 100% SDI-12 datalogger compatible, ensuring maximum flexibility in the field. The cable that connects the sensor with a recorder features built-in Kevlar members that prevent errors due to cable elongation.
The KPSI Model 501 SDI-12 is ideal for remote environmental monitoring applications that require low power with minimal current drain as found in a wide variety of ground, reservoir and surface water monitoring applications as well as for well and level monitoring environments. Its low-maintenance design includes a Super Dry Vent Filter that prevents moisture from entering the unit and requires changing only once per year.
The submersible pressure transducer is available in pressure ranges from 0 psig to 5 psig through 0 psig to 100 psig, with custom ranges available upon request. The 12 oz. unit has a supply voltage of 6 VDC to 28 VDC, with a current draw during data acquisition of 8 mA.
By participating in realistic evaluation of instrument accuracy that requires a combination of specialized laboratory testing and field trials under controlled conditions, Pressure Systems adheres to the OSW's guidelines and ensures the KPSI Model 501 SDI-12 meets all regulatory standards.
Delivery for a KPSI Model 501 SDI-12 is 2 weeks ARO.
For more information, contact Denise Topping, Pressure Systems, 34 Research Drive, Hampton, Va. 23666; Tel: 800-328-3665; Fax: 757-865-8744; E-mail: sales@PressureSystems.com; Web: http://pressuresystems.com/500.html
UPCOMING TRADESHOW: AWWA ACE 2010 -- June 20-24, 2010, Chicago, IL
READER SERVICE INQUIRIES: Please direct all product inquiries to Denise Topping, Pressure Systems, at 34 Research Drive, Hampton, Va. 23666, Tel: 800-328-3665; Fax: 757-865-8744; e-mail: Denise.Topping@PressureSystems.com.
A well-respected entity in the global environmental and resource management industry, Pressure Systems leverages its sensor packaging and compensation skills to supply the most sophisticated, yet cost-effective, instrumentation for water level determination and atmospheric pressure monitoring. The company's principal expertise of applying microprocessor technology to dramatically enhance sensor performance is at the forefront of Pressure Systems' latest offerings, providing value-added products that take advantage of the latest enabling technologies.
