Pressure Gauge includes integral transmitter.
Press Release Summary:

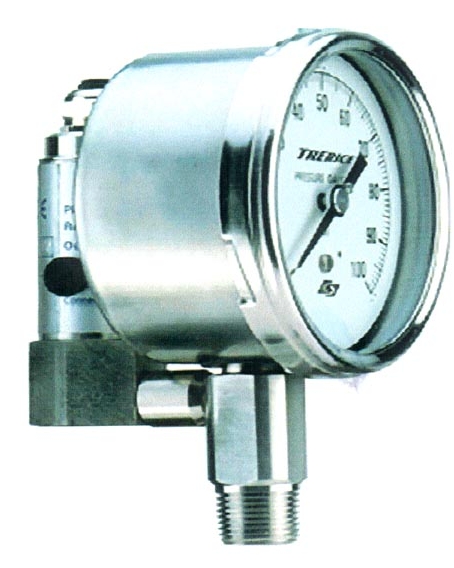

Series 700 Plus Pressure Transmitter Gauge has 4 in. dial for local indication of pressure, plus process, current, or voltage signal for remote indication, control or data acquisition. It comes with 1/4 or 1/2 in. NPT connections and electrical cable. Wetted parts are 316 stainless steel and integral transmitter is ceramic. It is available in 22 pressure ranges from 30 in. Hg to 10,000 psi with accuracy of +/- 0.3% FS.
Original Press Release:
The NEW 700 Plus Industrial Pressure Gauge with Integral Pressure Transmitter
The Series 700 Plus Pressure Transmitter Gauge provides an Easy to read 4"(100mm) Dial and an Integral Pressure Transmitter, this combination enables the user to obtain a Local Indication of Pressure, as well as a Process, current or voltage, Signal for Remote Indication, Control or Data Acquisition.
The Transmitter Gauge is supplied with a either 1/4" or 1/2" NPT Connections and attached electrical cable. Wetted parts are 316 stainless steel and the integral transmitter is ceramic.
Twenty - two(22) Pressure Ranges from 30" HG to 10,000 PSI with an accuracy of +- 0.3% FS. Additional pressure measurement ranges are available, including Altitude, Ammonia, Refrigerant ranges.
For Complete Specifications, as well as Pricing information, please contact VESPO MARKETING ASSOCIATES, INC., Toll Free at 1 - 800 - 49 - VESPO (Phone) or by Fax at 1 - 800 - 36 - VESPO. Or by E- Mail at controls@vespo.com
PO. Box 60, Thompson Ridge NY 10985 * 800-49-VESPO * FAX 800 36-VESPO * E-mail: controls@vespo.com * Website: www.vespo.com
