DC to AC Power Supplies (Inverters)
Power Inverter Modules feature low-inductive design.
Share:
Press Release Summary:
Designed for fast-switching power applications beyond 100 kW, flowPHASE 2 S offers ultra-low inductive path for transient current that reduces parasitic inductance to 7 nH. Design optimizes symmetry of power semiconductor and symmetry of gate signal while minimizing voltage overshoot at high current cutoff. Able to work at switching frequencies up to 20 kHz, modules are offered in 600 V/300 or 400 A and 1200 V/ 200 or 300 A ratings and come in 117 x 64 mm housings.
Original Press Release:
Vincotech Releases a Family of Low Inductive Inverter Modules
-- flowPHASE 2 S enables high-performance switching for applications beyond 100 kW. --
Munich/Germany - Vincotech, a supplier of module-based solutions for power electronics, today announced the release of a new family of products called flowPHASE 2 S. Designed for fast-switching power applications beyond 100 kW, these new modules provide an ultra-low inductive path for transient current.
Parasitic inductances are a major problem in power modules, particularly in fast-switching applications. To solve this problem, Vincotech has added an ultra-low inductive path for transient current to today's standard power module design. This reduces parasitic inductance in the new flowPHASE 2 S to 7nH.
Some of the flowPHASE 2 S family's benefits:

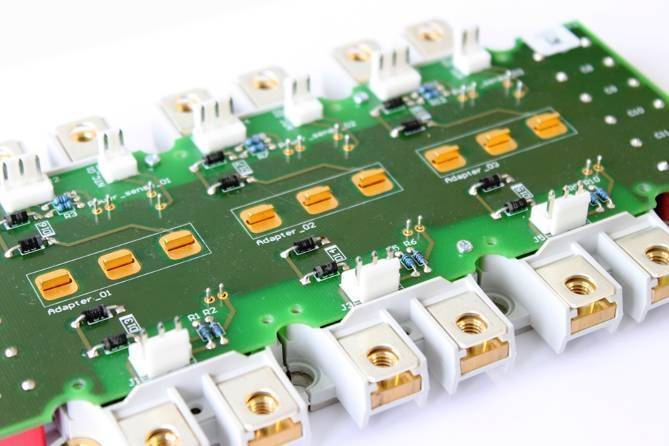

- Capacitors on board the PCB
- Added ultra-low inductive path with internal bridges
- Parallel connection of the 3 modules' DC link inputs
Product code Short code Characteristics Chip technology
S2062PA300SA P815-F 600V / 300A IGBT3
S2062PA400SA P816-F 600V /400A IGBT3
S2122PA200FE P818-F20 1200V / 200A IGBT2 Q Phantom Speed IGBT
S2122PA200SC P818-F 1200V/ 200A IGBT4
S2122PA300SC P819-F 1200V / 300A IGBT4
flowPHASE 2 S modules come in 17-mm high flowSCREW 2 housings measuring 117 mm by 64 mm. They are in serial production and samples are available. To learn more about Vincotech's power modules, please visit: www.vincotech.com/en/products/power/products-by-topology.php
Vincotech is a registered trademark.
ABOUT VINCOTECH
Vincotech develops and manufactures subsystems and electronic components and offers manufacturing services geared to help customers master complex challenges in electronics integration. Vincotech's extensive portfolio encompasses standard and tailored solutions, engineering services, and technical support for customers worldwide. These products and services contribute to sustainable, environmentally sound solutions that help modern society embrace mega-trends and explore new avenues. With approximately 600 employees worldwide, backed by vast experience and a long history in electronics integration, Vincotech leverages these assets to help customers achieve maximum market success. To learn more about Vincotech, please visit the company's website at www.vincotech.com
