Power Amplifier targets 800-1,000 MHz frequency band.
Press Release Summary:

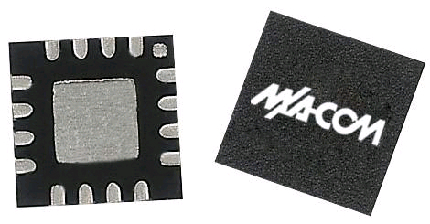

Suited for RFID reader applications, 2 W Model MAAP-007649-000100 features greater than 1 W DRM spectral mask linearity and flat gain response. Typical performance at 900 MHz is 19 dB gain, 34 dBm P1dB, and 49 dBm output IP3. Amplifier requires single +7.5 Vdc supply, in addition to +4.5 V reference pin for power down and power control capability. It is RoHS-compliant and available in 4 mm, 16-lead PQFN surface mount package.
Original Press Release:
M/A-COM Introduces New Two-Watt Power Amplifier
New HBT MMIC Amplifier Designed for 800 to 1000 MHz Frequency Band and RFID Reader Applications
LOWELL, Mass., Jan. 10, 2007 - M/A-COM, a business unit of Tyco Electronics and a leading provider of wireless radio frequency (RF), microwave and millimeter wave components, today announced the MAAP-007649-000100, a two-watt power amplifier for the 800 to 1000 MHz frequency band. The MAAP-007649-000100 design displays optimum performance for RFID reader applications, with greater than one watt DRM (Dense Reader Mode) spectral mask linearity, and a flat gain response.
"With the introduction of the MAAP-007649-000100 two-watt power amplifier, we have dramatically enhanced the quality of our company's HBT MMIC special offerings," said Tim Galla, product manager, M/A-COM. "The new power amplifier is designed on a high breakdown voltage GaAs HBT process, meeting the same ruggedness requirements as GSM handsets, further enhancing the reliability of M/A-COM's HBT broadband power amplifier offerings."
Typical performance of the M/A-COM's MAAP-007649-000100 at 900 MHz is 19 dB gain, 34 dBm P1dB, and 49 dBm output IP3. The device also features good ACPR (Adjacent Channel Power Ratio) linearity performance for cellular infrastructure standards. The amplifier requires a single +7.5 Vdc supply, in addition to a +4.5 volt reference pin for power down and power control capability. The MAAP-007649-000100 is RoHS compliant and available in 4mm 16-lead PQFN surface mount packaging.
Pricing and Availability
M/A-COM's MAAP-007649-000100 is available from stock and is priced at $4.94 in quantities of 10,000. Contact M/A-COM's domestic and international sales and distribution channels for exact price and delivery quotes. Datasheets and supporting technical documents are available online at www.macom.com.
M/A-COM, Inc., a business unit of Tyco Electronics, is an established industry leader in the design, development and manufacture of radio frequency (RF), microwave and millimeter wave semiconductors, components and technologies for the wireless telecommunications, automotive, aerospace and military industries. Holding hundreds of patents in the field, M/A-COM is internationally known as an innovator and integrator whose technologies are found in some of today's most advanced signal intelligence and defense systems, as well as in leading automotive navigation, safety, and communications solutions. M/A-COM is also a major supplier of critical communications systems and equipment for public safety, utility, federal and select commercial markets. Headquartered in Lowell, MA, M/A-COM has offices and manufacturing facilities worldwide. Information about M/A-COM can be found on the Web at www.macom.com, a complete, updated listing of all of M/A-COM's RoHs compliant parts is available on the Web at www.macom.com/rohs.
About Tyco Electronics
Tyco Electronics is a leading global provider of engineered electronic components, network solutions and wireless systems, with 2006 sales of $12.7 billion to customers in 150 countries. We design, manufacture and market products for customers in industries from automotive, appliances and aerospace and defense to telecommunications, computers and consumer electronics. With over 8,000 engineers and worldwide manufacturing, sales and customer service capabilities, Tyco Electronics' commitment is our customers' advantage.
M/A-COM and Tyco are trademarks
Other products, logos and Company names mentioned herein may be trademarks of their respective owners.
