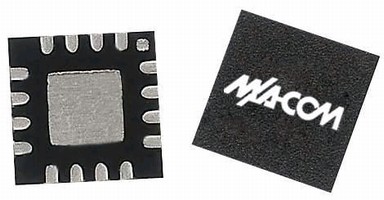

Power Amplifier targets 1,880-1,930 MHz DECT applications.
Press Release Summary:
Dual-mode, 3-stage Model MAAPSS0076 is intended for Digitally Enhanced Cordless Telephone applications and is available in lead-free, 3 x 3 mm, PQFN 12-lead package for RoHS compliance. In High Power Mode, unit generates 25.5 dBm of output power while drawing 350 mA of current. In Low Power Model, output power is 17 dBm with current of 130 mA. Amplifier has typical power gain of 25.5 dB with operating voltage of 1.8-3.6 V.
Original Press Release:
M/A-COM Introduces New ROHS Compliant 1880 - 1930 MHZ DECT Power Amplifier
Low cost, Lead-Free 3X3 mm PQFN 12-lead packaging, ideal for low control voltage and high performance applications
LOWELL, Mass, October 4, 2005 - M/A-COM, a business unit of Tyco Electronics and a leading provider of wireless radio frequency (RF), microwave and millimeter wave components, today announced a new RoHS Compliant DECT Power Amplifier for applications that require dual power modes, high gain and small size at a low cost. The MAAPSS0076, with its wide voltage operating range, is a dual mode power amplifier that maximizes system performance while reducing DC Power consumption.
The MAAPSS0076 is a three stage power amplifier designed for Digitally Enhanced Cordless Telephone (DECT) applications and is available in a lead-free 3 mm 12-lead PQFN plastic package. The power amplifier features an integrated power enable pin for accurate ramp control and a separate power mode pin for current savings in a low power mode state. A voltage compensation circuit is also included for applications where the amplifier supply voltage is unregulated and is directly connected to the battery.
In the High Power Mode, the PA generates 25.5 dBm of Output Power while drawing 350 mA of current. In the Low Power Mode (LPM), the Output Power is 17 dBm with a current of 130 mA. The MAAPSS0076 has a typical power gain of 25.5 dB with an operating voltage of 1.8 to 3.6 V.
Price and Availability
The MAAPSS0076 is available from stock and is priced at $0.54 in quantities of 10K. Contact M/A-COM's domestic and international sales channels for price and delivery quotes. Datasheets and supporting technical documents are available online at www.macom.com.
M/A-COM, Inc., a business unit of Tyco Electronics, is an established industry leader in the design, development and manufacture of radio frequency (RF), microwave and millimeter wave semiconductors, components and technologies for the wireless telecommunications, automotive, aerospace and military industries. Holding hundreds of patents in the field, M/A-COM is internationally known as an innovator and integrator whose technologies are found in some of today's most advanced signal intelligence and defense systems, as well as in leading automotive navigation, safety, and communications solutions. M/A-COM is also a major supplier of critical communications systems and equipment for public safety, utility, federal and select commercial markets. Headquartered in Lowell, MA, M/A-COM has offices and manufacturing facilities worldwide. Information about M/A-COM can be found on the Web at www.macom.com, a complete, updated listing of all of M/A-COM's RoHS compliant parts is available on the Web at www.macom.com/rohs.
Tyco Electronics, a business segment of Tyco International Ltd., is the world's largest passive electronic components manufacturer; a world leader in cutting-edge wireless, active fiber optic and complete power systems technologies; and a provider of premise wiring components and systems. Tyco Electronics provides advanced technology products from over forty well-known and respected brands, including Agastat, Alcoswitch, AMP, AMP NETCONNECT, Buchanan, CII, CoEv, Critchley, Elcon, Elo TouchSystems, M/A-COM, Madison Cable, OEG, Potter & Brumfield, Raychem, Schrack and Simel. For more information, visit www.tycoelectronics.com.
